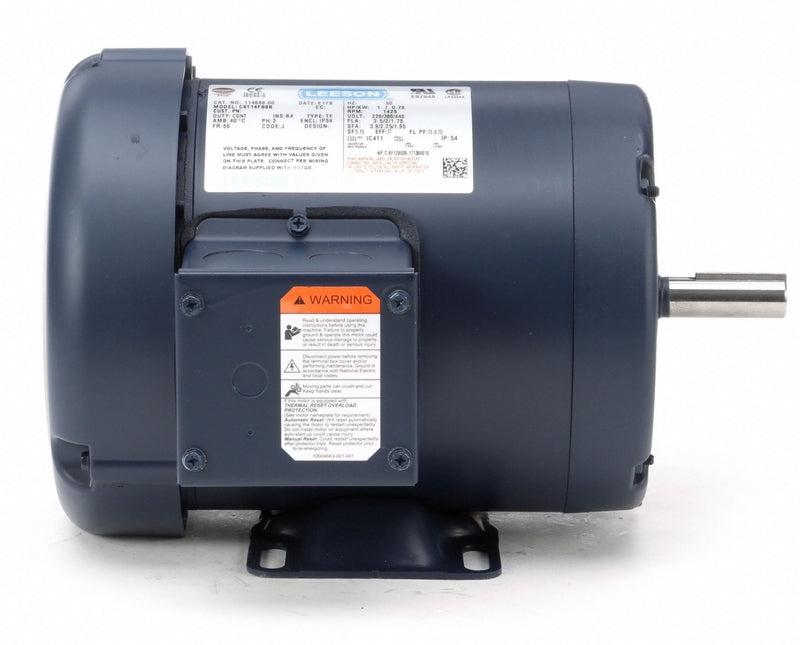

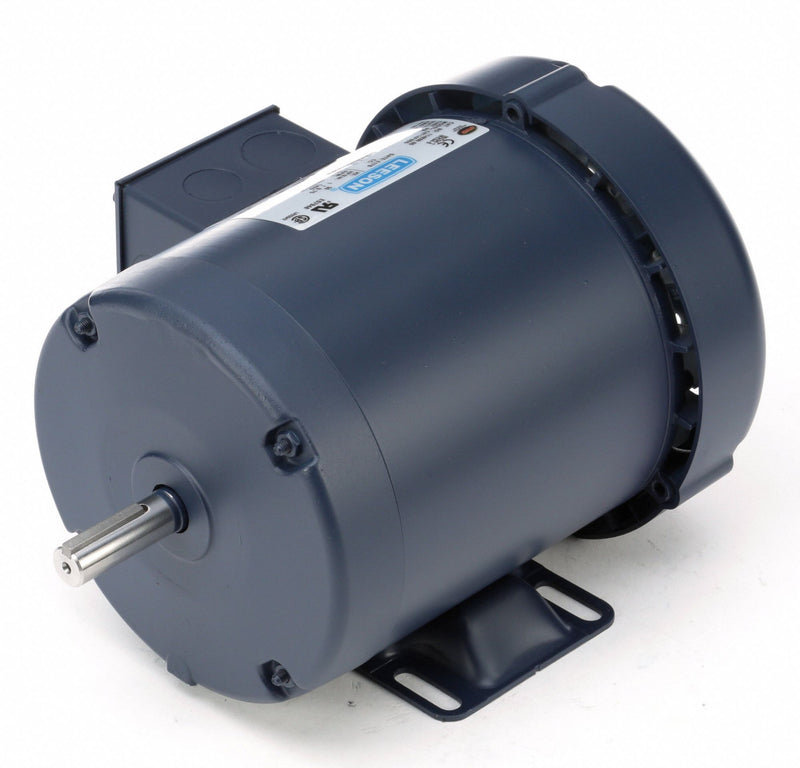

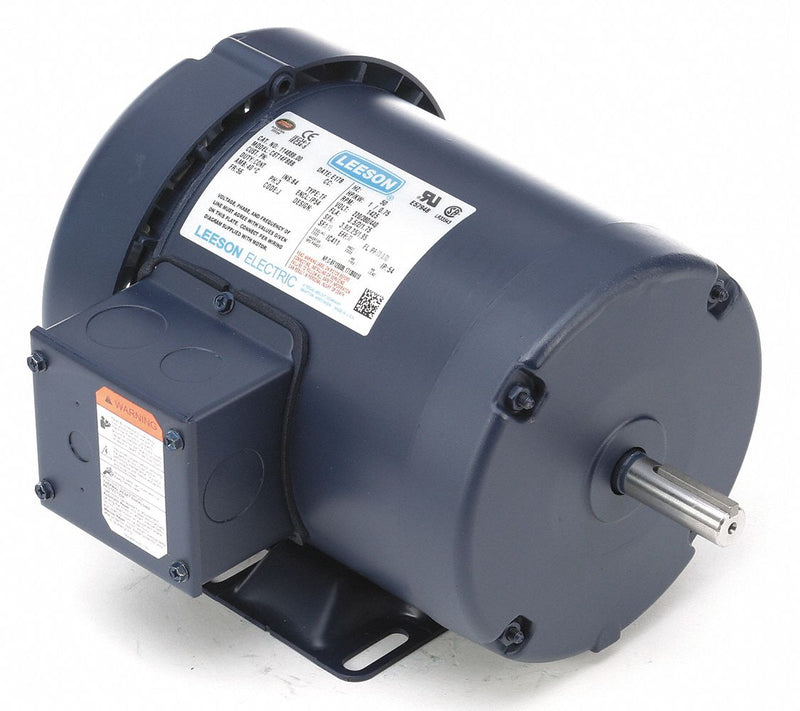

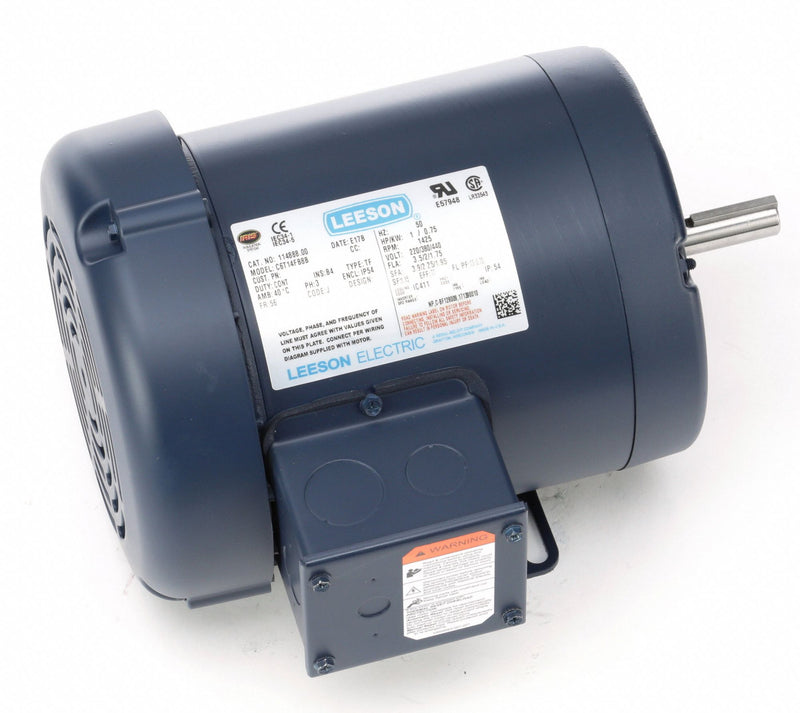

Leeson 1 HP 50 Hz Motor,3-Phase,1425 Nameplate RPM,220/380/440 Voltage,Frame 56 - 114888

LeesonSKU: C1560867
MPN : 114888
Weight : 27.45 lb
filler

Price:
$1,002.48 $1,222.54

Availability : Usually Ships in 1-3 Business Days

50 Hz Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1; No. of Speeds: 1; Nameplate RPM: 1425; Voltage: 220/380/440; Hz: 50; Phase: 3; Full Load Amps: 3.5/2/1.75; Frame: 56; Motor Mounting Type: Rigid Base; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Keyed; Ambient Temperature: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Length Less Shaft: 9 3/16 in; Overall Length: 11 1/16 in; RPM Range: 1401-1500; Voltage Compatibility: 220/380/440 50 Hz

Item50 Hz Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1
No. of Speeds1
Nameplate RPM1425
Voltage220/380/440
Hz50
Phase3
Full Load Amps3.5/2/1.75
Frame56
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Shaft RotationCW/CCW
Motor Shaft DesignKeyed
Ambient Temperature40 Degrees C
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft9 3/16 in
Overall Length11 1/16 in
RPM Range1401-1500
Voltage Compatibility220/380/440 50 Hz
