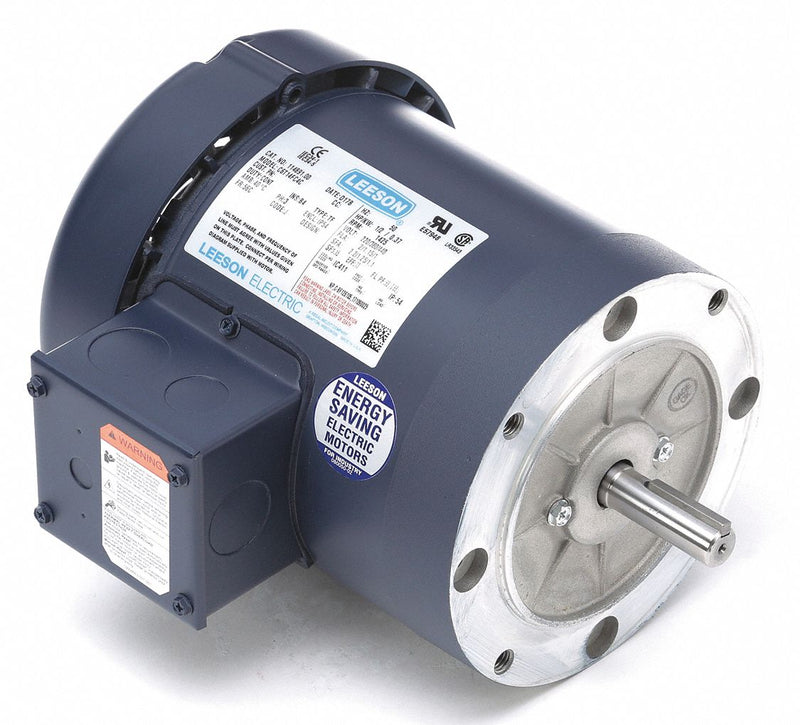

Leeson 1 HP 50 Hz Motor,3-Phase,950 Nameplate RPM,220/380/440 Voltage,Frame 145TC - 121273

LeesonSKU: C1560882
MPN : 121273
Weight : 37.61 lb

filler

Price:
$853.58 $1,040.95

Availability : Usually Ships in 1-3 Business Days

50 Hz Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1; No. of Speeds: 1; Nameplate RPM: 950; Voltage: 220/380/440; Hz: 50; Phase: 3; Full Load Amps: 4.6/2.65/2.3; Frame: 145TC; Motor Mounting Type: Face; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Keyed; Ambient Temperature: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 2 1/4 in; Length Less Shaft: 10 3/4 in; Overall Length: 13 in; RPM Range: 0-1000; Voltage Compatibility: 220/380/440 50 Hz

Item50 Hz Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1
No. of Speeds1
Nameplate RPM950
Voltage220/380/440
Hz50
Phase3
Full Load Amps4.6/2.65/2.3
Frame145TC
Motor Mounting TypeFace
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Shaft RotationCW/CCW
Motor Shaft DesignKeyed
Ambient Temperature40 Degrees C
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft10 3/4 in
Overall Length13 in
RPM Range0-1000
Voltage Compatibility220/380/440 50 Hz
