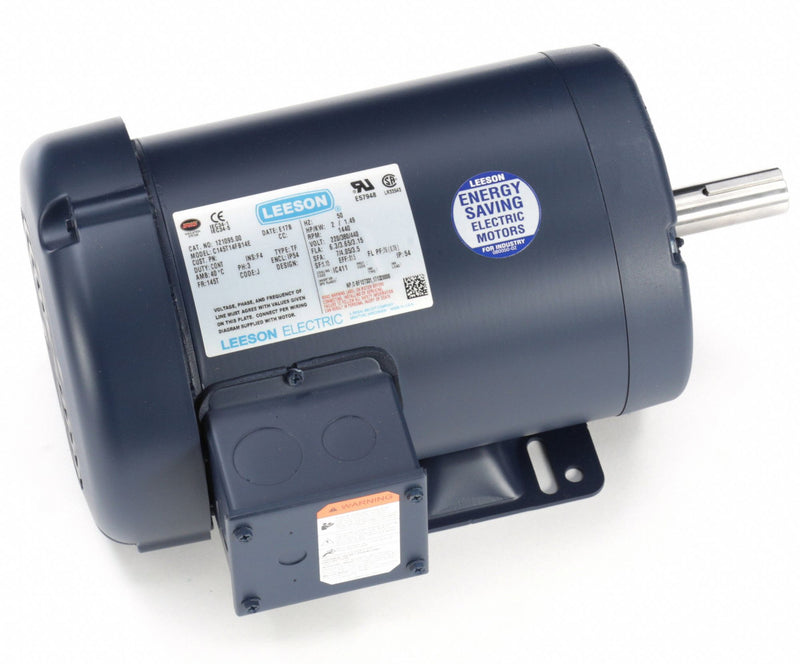

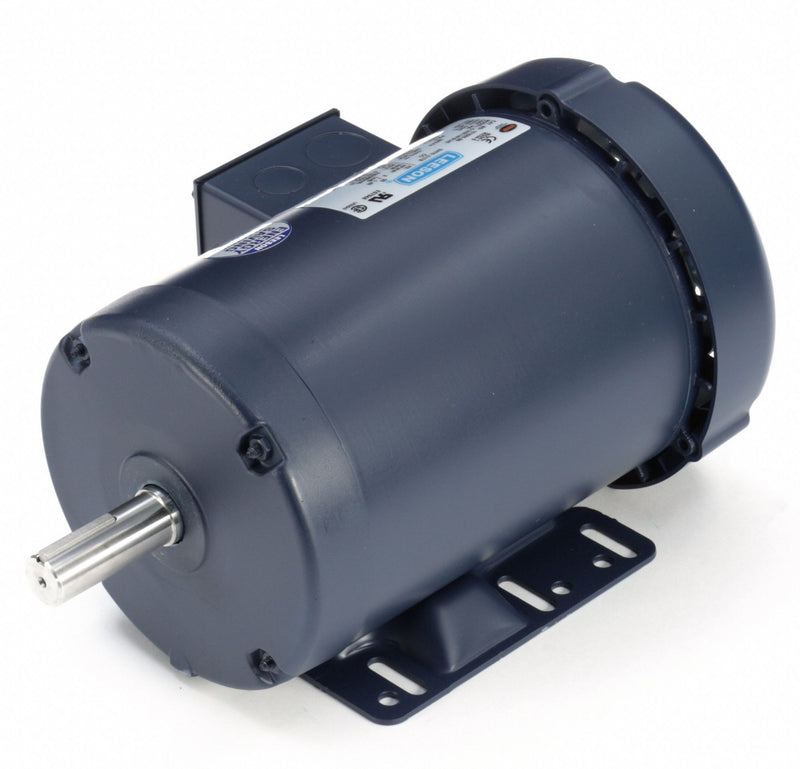

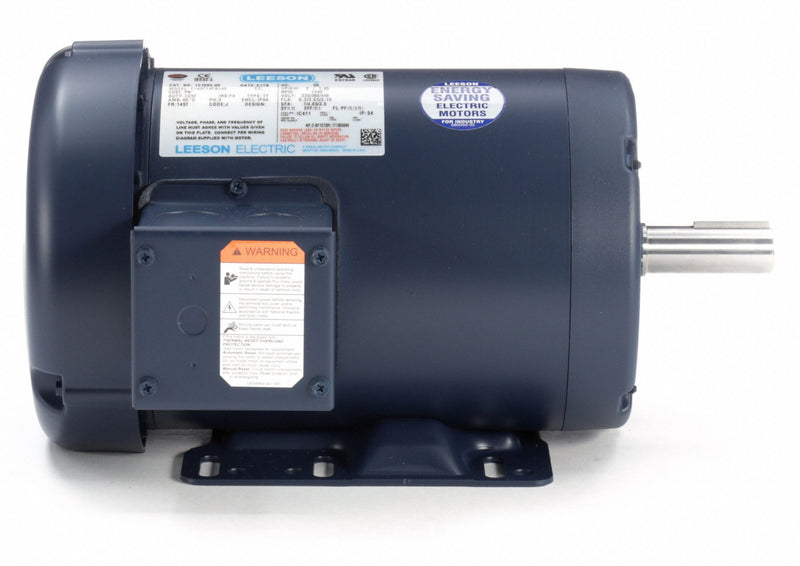

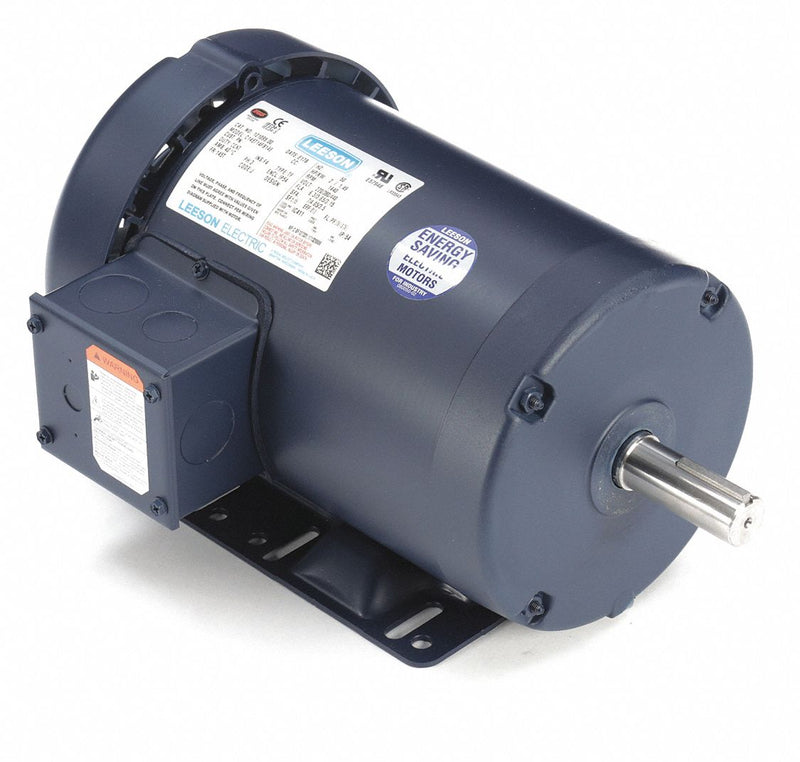

Leeson 2 HP 50 Hz Motor,3-Phase,1440 Nameplate RPM,220/380/440 Voltage,Frame 145T - 121095

LeesonSKU: C1560870
MPN : 121095
Weight : 41.49 lb

filler

Price:
$1,034.00 $1,260.98

Availability : Usually Ships in 20-30 Business Days

50 Hz Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 2; No. of Speeds: 1; Nameplate RPM: 1440; Voltage: 220/380/440; Hz: 50; Phase: 3; Full Load Amps: 6.3/3.65/3.15; Frame: 145T; Motor Mounting Type: Rigid Base; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Keyed; Ambient Temperature: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 2 1/4 in; Length Less Shaft: 11 in; Overall Length: 13 1/4 in; RPM Range: 1401-1500; Voltage Compatibility: 220/380/440 50 Hz

Item50 Hz Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP2
No. of Speeds1
Nameplate RPM1440
Voltage220/380/440
Hz50
Phase3
Full Load Amps6.3/3.65/3.15
Frame145T
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Shaft RotationCW/CCW
Motor Shaft DesignKeyed
Ambient Temperature40 Degrees C
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft11 in
Overall Length13 1/4 in
RPM Range1401-1500
Voltage Compatibility220/380/440 50 Hz
