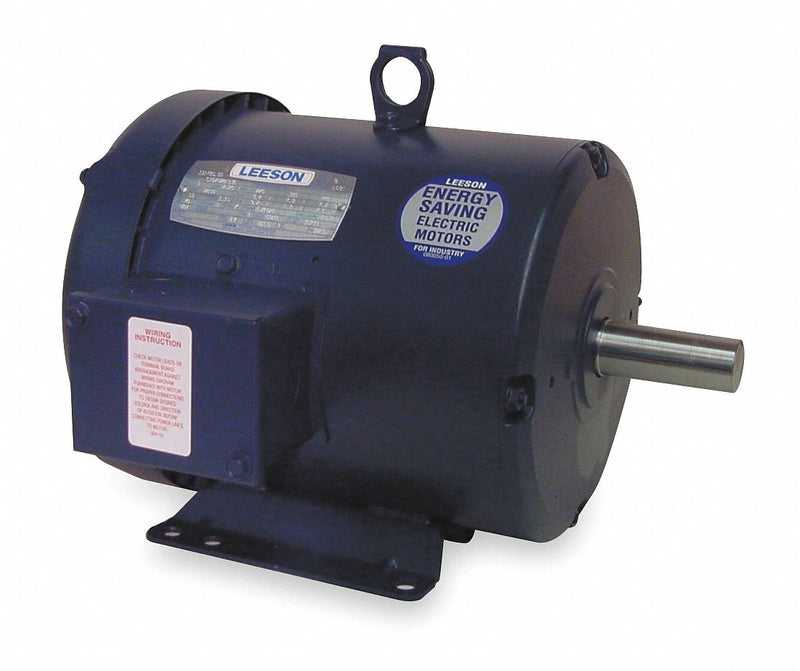

Leeson 5 HP 50 Hz Motor,3-Phase,2850 Nameplate RPM,220/380/440 Voltage,Frame 184T - 131481

LeesonSKU: C1560872
MPN : 131481
Weight : 75.35 lb
filler

Price:
$1,237.57 $1,509.23

Availability : Usually Ships in 1-3 Business Days

50 Hz Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 5; No. of Speeds: 1; Nameplate RPM: 2850; Voltage: 220/380/440; Hz: 50; Phase: 3; Full Load Amps: 12.8/7.4/6.4; Frame: 184T; Motor Mounting Type: Rigid Base; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Keyed; Ambient Temperature: 40 Degrees C; Shaft Dia.: 1 1/8 in; Shaft Length: 2 3/4 in; Length Less Shaft: 11 3/4 in; Overall Length: 14 1/2 in; RPM Range: 1801-3000; Voltage Compatibility: 220/380/440 50 Hz

Item50 Hz Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP5
No. of Speeds1
Nameplate RPM2850
Voltage220/380/440
Hz50
Phase3
Full Load Amps12.8/7.4/6.4
Frame184T
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Shaft RotationCW/CCW
Motor Shaft DesignKeyed
Ambient Temperature40 Degrees C
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
Length Less Shaft11 3/4 in
Overall Length14 1/2 in
RPM Range1801-3000
Voltage Compatibility220/380/440 50 Hz
