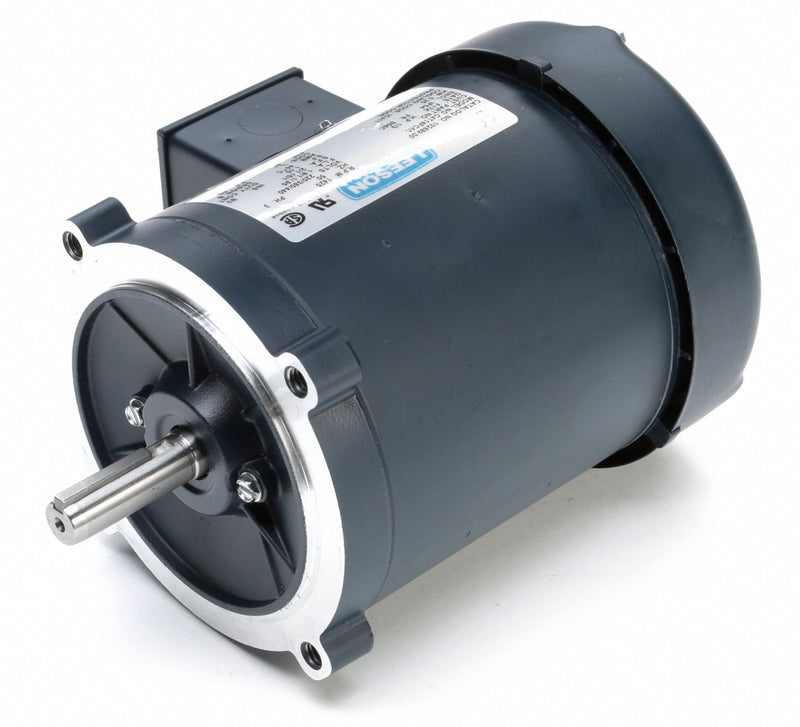

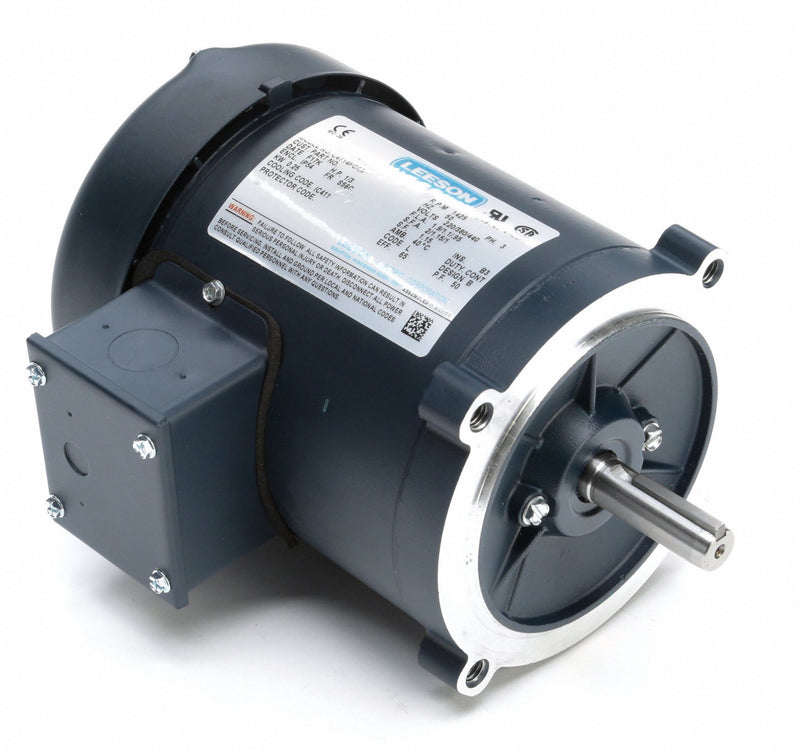

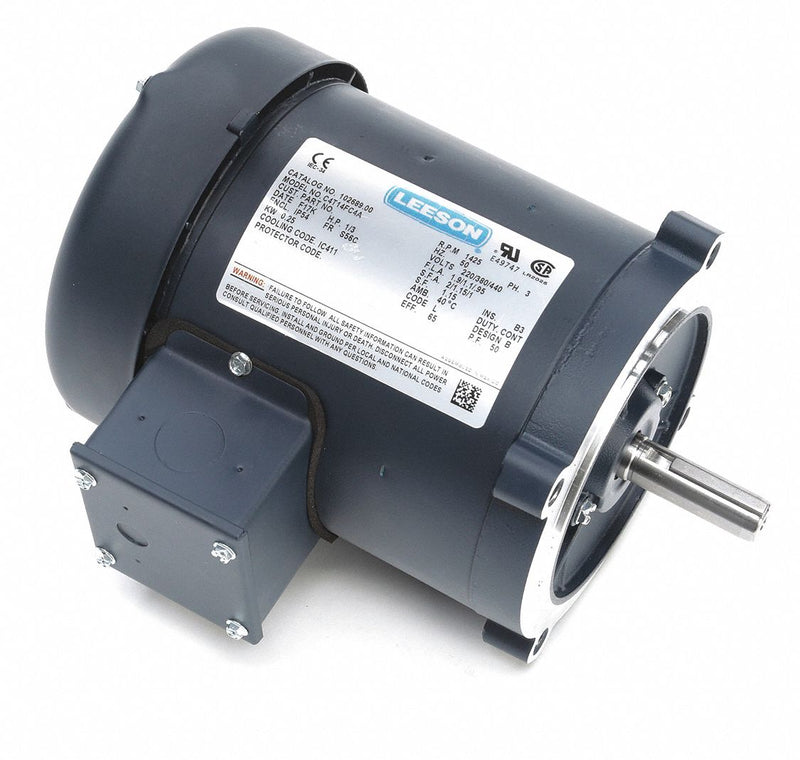

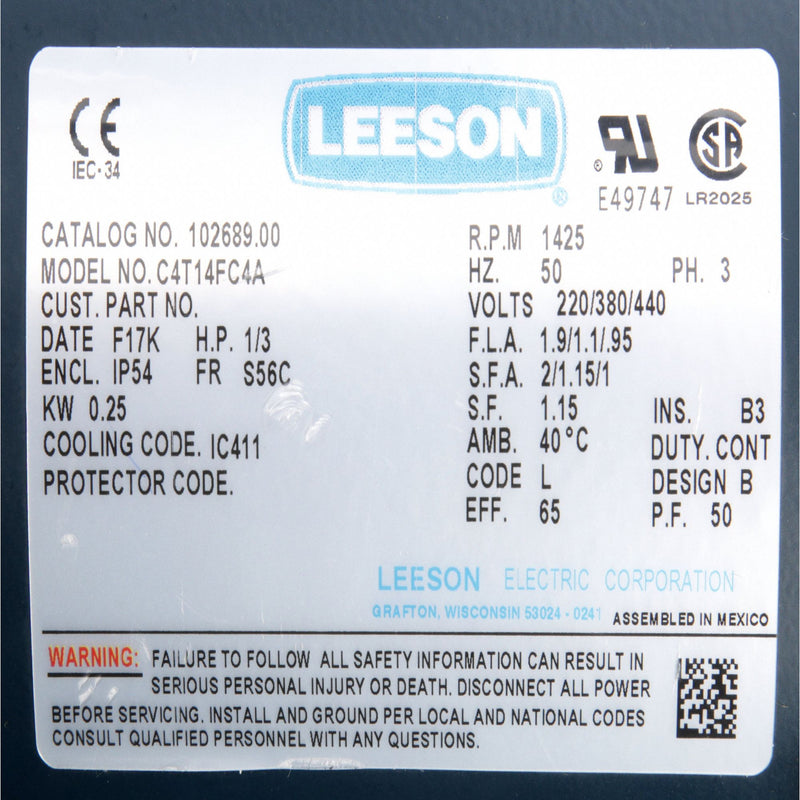

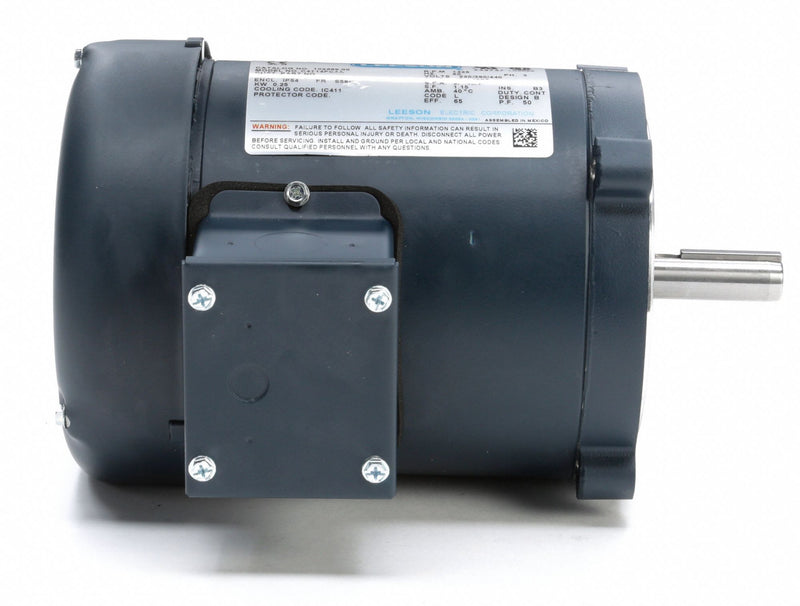

50 Hz Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1/3; No. of Speeds: 1; Nameplate RPM: 1425; Voltage: 220/380/440; Hz: 50; Phase: 3; Full Load Amps: 1.9/1.1/0.95; Frame: 56C; Motor Mounting Type: Face; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Keyed; Ambient Temperature: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Length Less Shaft: 7 7/8 in; Overall Length: 9 3/4 in; RPM Range: 1401-1500; Voltage Compatibility: 220/380/440 50 Hz
| Item | 50 Hz Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/3 |
| No. of Speeds | 1 |
| Nameplate RPM | 1425 |
| Voltage | 220/380/440 |
| Hz | 50 |
| Phase | 3 |
| Full Load Amps | 1.9/1.1/0.95 |
| Frame | 56C |
| Motor Mounting Type | Face |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 7 7/8 in |
| Overall Length | 9 3/4 in |
| RPM Range | 1401-1500 |
| Voltage Compatibility | 220/380/440 50 Hz |
