Availability : Usually Ships Within 5-7 Business Days

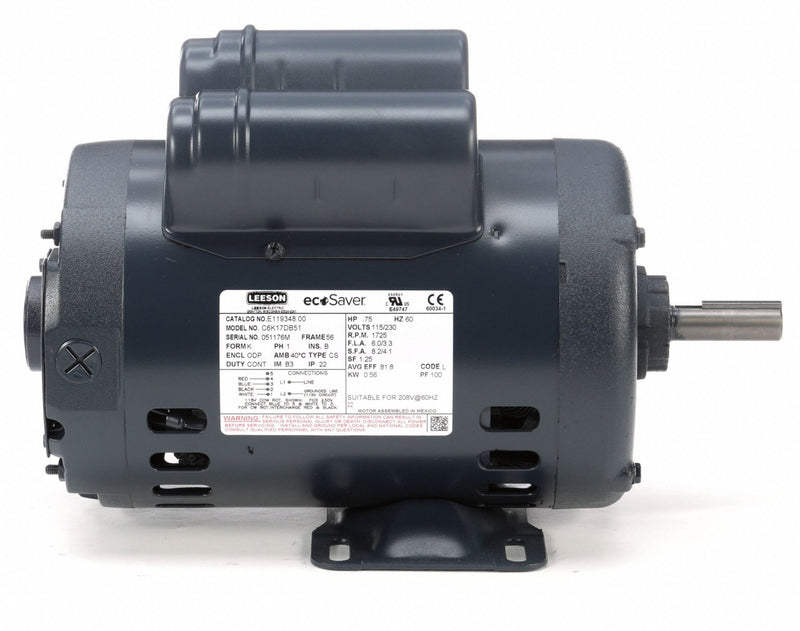

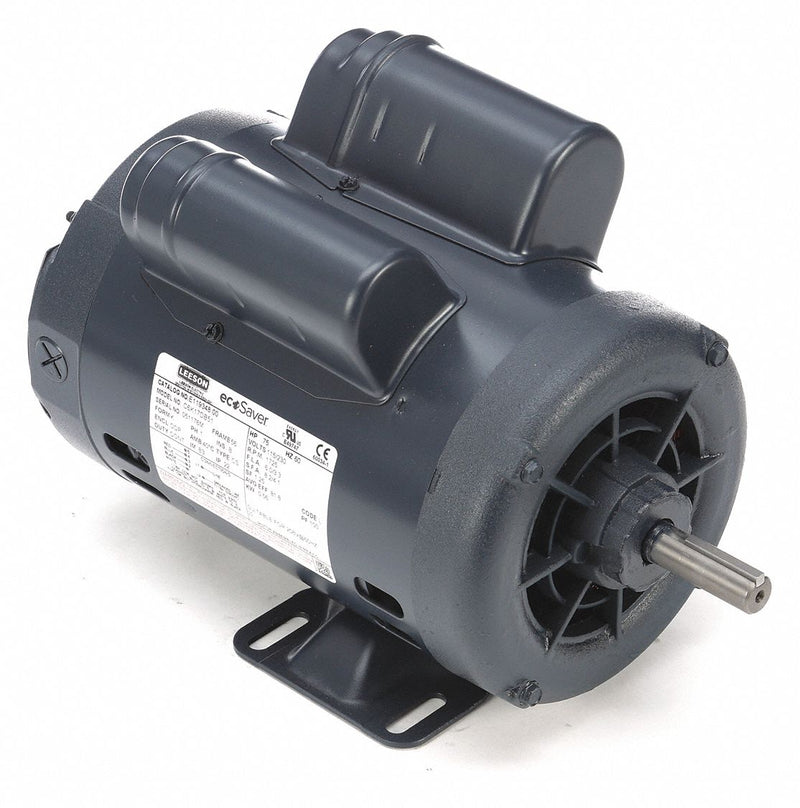

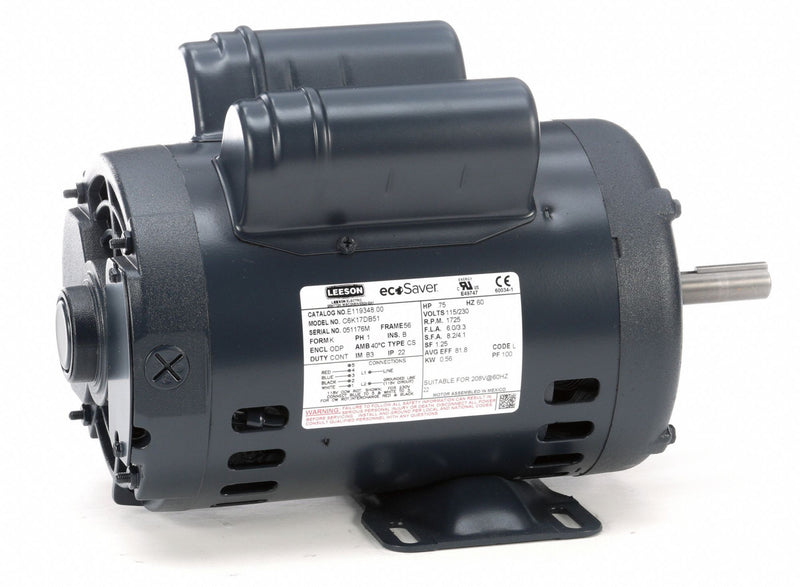

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.
Item | General Purpose Motor |
Motor Application | General Application |
Motor Design | Capacitor-Start |
Motor Enclosure Design | Open Dripproof |
HP | 3/4 |
Nameplate RPM | 1725 |
Frame | 56 |
Voltage | 115/230 |
Hz | 60 |
Phase | 1 |
Full Load Amps | 6.6/3.3 |
No. of Speeds | 1 |
Motor Mounting Type | Rigid Base |
Motor Mounting Position | Horizontal |
Motor Thermal Protection | None |
Ins. Class | B |
Motor Service Factor | 1.25 |
Motor Bearings | Ball |
Motor Frame Material | Rolled Steel |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Shaft Dia. | 5/8 in |
Shaft Length | 1 15/16 in |
Length Less Shaft | 11 1/4 in |
Overall Length | 11 7/8 in |
Motor Shaft Design | Keyed |
Standards | CSA, UL |
Duty | Continuous |
Motor Efficiency Group | NEMA Premium Efficient |
Nominal Efficiency | 81.8 % |
Manufacturers Warranty Length | 3 yr |
Green Certification or Other Recognition | NEMA Premium(R) Rated |
