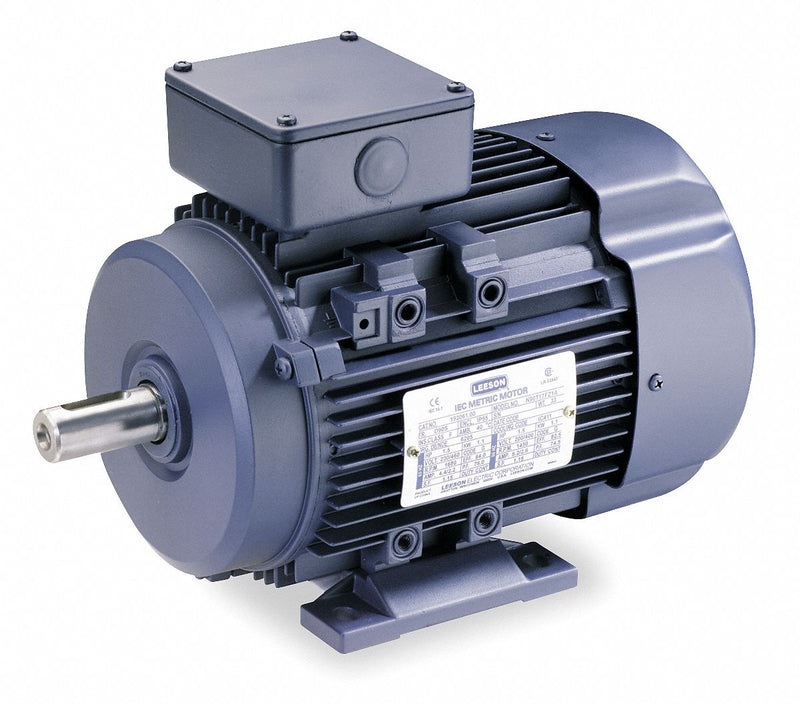

Leeson 1 HP Premium Efficiency Metric Motor,3-Phase,1150 Nameplate RPM,230/460 Voltage,Frame D90S - 192200

LeesonSKU: C1564880
MPN : 192200
Weight : 39.52 lb
filler

Price:
$738.63 $900.77

Availability : Usually Ships in 1-3 Business Days

Steel fan cover and low-noise fan maximize airflow efficiency. Inverter-Rated Insulation System (IRIS) provides protection against voltage spikes induced by variable frequency drives. V-seals on both drive end and nondrive end. Multimount repositionable feet allow 3 conduit box positions. Terminal boards included. Suitable as replacement motors for machine tools, textile machinery, and other equipment with metric dimensions.

ItemPremium Efficiency Metric Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1
kW0.75
Nameplate RPM1150
FrameD90S
Voltage230/460
Hz60/50
Phase3
Full Load Amps3.4/1.7
Motor Mounting TypeRigid Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Aluminum
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.24 mm
Shaft Length50 mm
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency82.5 %
CC NumberCC005A
DutyContinuous
StandardsCE, CSA (LR33543), IEC and NEMA, UL (E57948)
IncludesRepositionable Mounting Feet
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
Green Certification or Other RecognitionNEMA Premium(R) Rated
