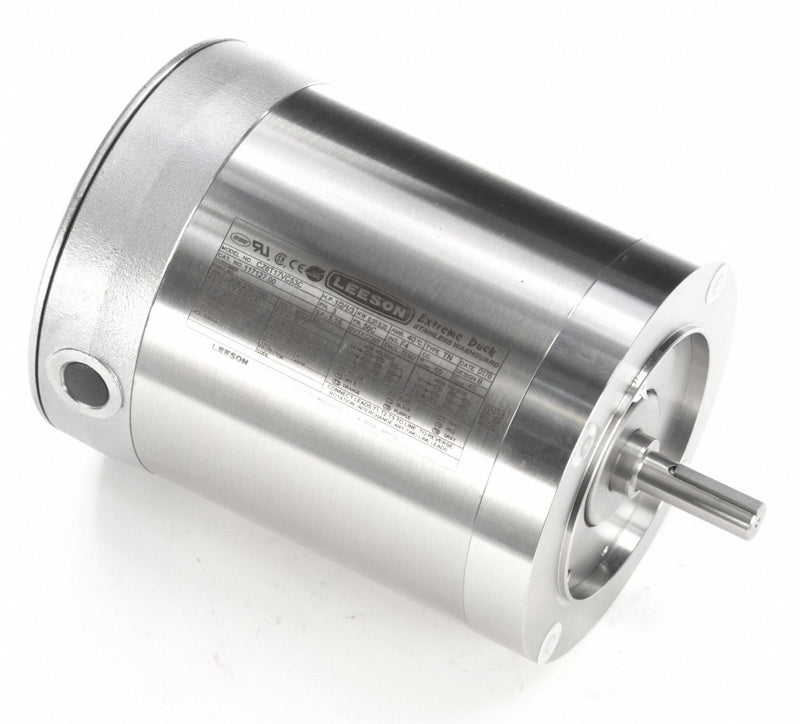

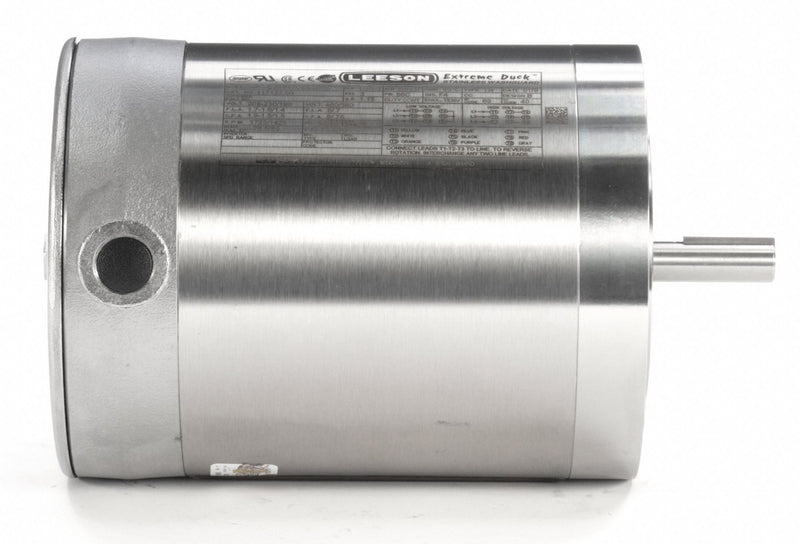

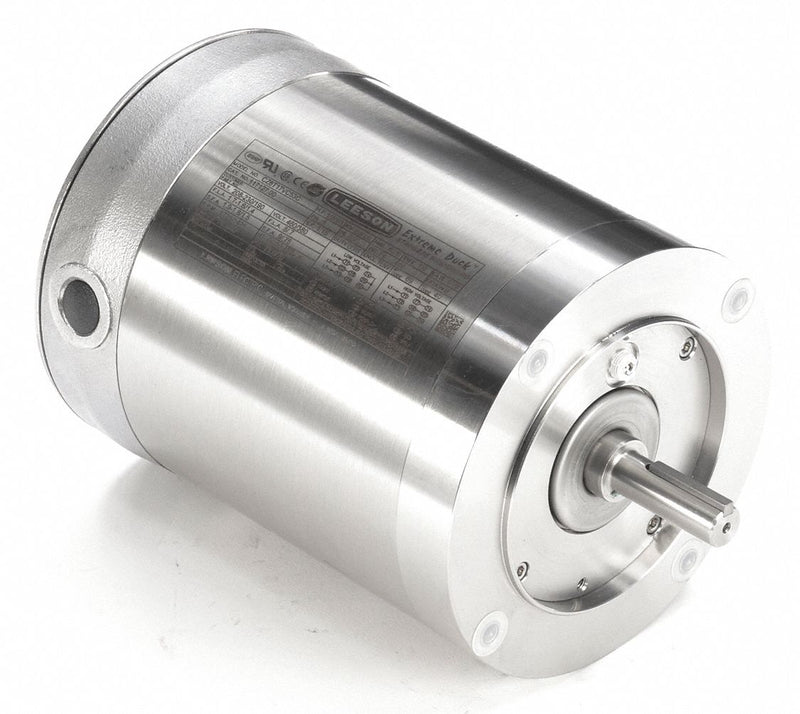

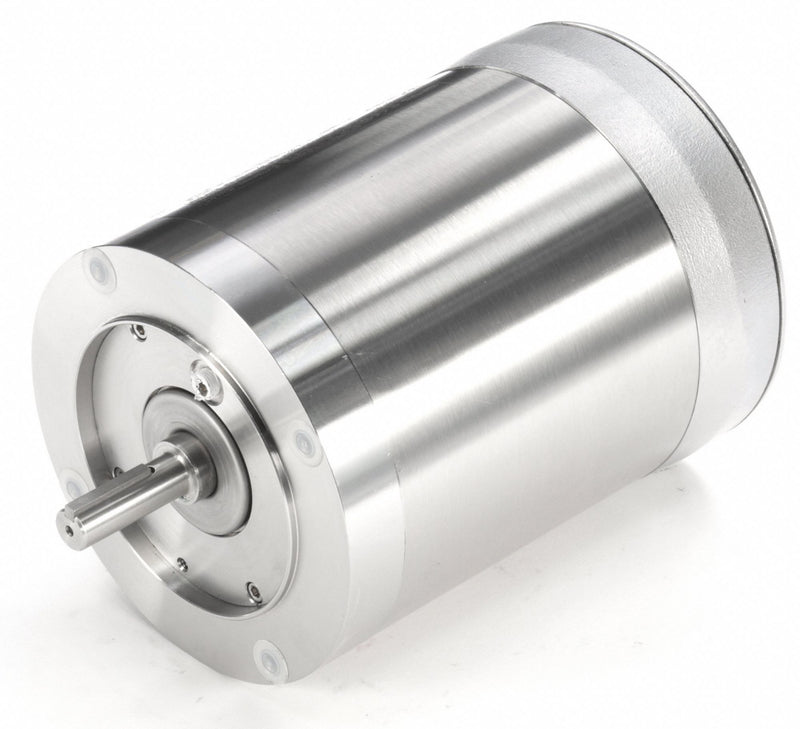

Stainless Steel Encapsulated 3-Phase Washdown Motors,Service factor: 1.15 Insulation: Class F Inverter rated, see table footnotes for details Max. ambient: 40C Thermal protection: none Bearings: sealed ball Rotation: CW/CCW,Feature Hydro Sealed System HS2 that protects from the outside-in to reduce entrance points of contamination. Design minimizes exterior hardware and reduces surfaces that may trap application elements. Screw-on conduit box covers with O-rings for sealing. Suitable for use in food processing and pharmaceutical applications as well as in beverage, bottling and sewage treatment plants.,UL Recognized, CSA Certified, BISSC Certified.
| Item | Washdown Motor |
| Motor Application | Washdown |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/2 |
| Nameplate RPM | 1725 |
| Frame | 56C |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 1.7-1.6/0.8 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Motor Frame Material | Stainless Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Motor Shaft Design | Keyed |
| Body Dia. | 6 9/16 in |
| Length Less Shaft | 8 7/8 in |
| Overall Length | 10 3/4 in |
| Ins. Class | F |
| RPM Range | 1701-1800 |
| Duty | Continuous |
| Shaft Material | 303 Stainless Steel |
| Conduit Box | Oversized Stainless Steel BICB and Threaded Cover with O Ring |
| Drain Plugs | None |
| Endshields | Stainless Steel |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 78.5 % |
| Application | Chemical Processing |
| Includes | Base, Conduit Box Cover Endshields and Bearing Carrier Cover, Frame |
| Standards | BISSC (769), CSA Certified (LR33543), CSA Energy Efficiency Veri |
