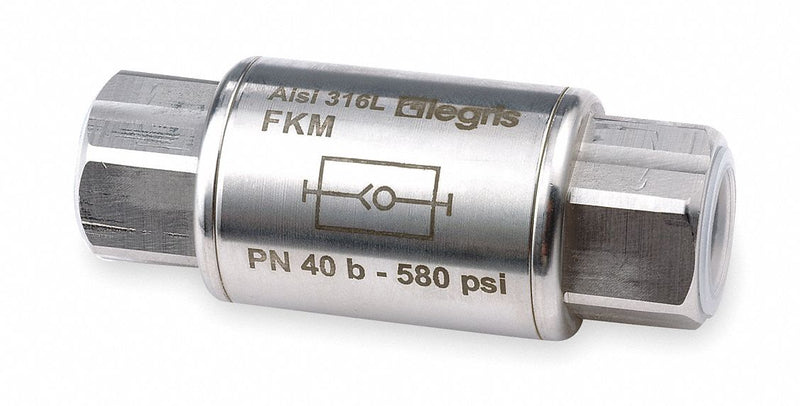

Legris Check Valve, 1/4 in, Single, Inline Spring, 316 Stainless Steel, FNPT x FNPT, PK 2 - 4895 14 14

ParkerSKU: C1910805
MPN : 4895 14 14
Weight : 0.35 lb
filler

Price:
$265.61 $323.91

Availability : Usually Ships in 5-7 Business Days

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Inline Spring; Body Material - Valves: 316 Stainless Steel; Pipe or Tube Size - Check Valves: 1/4 in; Connection Type - Check Valves: FNPT x FNPT; Cracking Pressure - Check Valves: 3.6 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: FKM; Max. Temp. - Valves: 356 Degrees F; Min. Temp. - Valves: -4 Degrees F; Max. Water Pressure - Valves: 580 psi; Max. Steam Pressure - Valves: Not Rated; Seat Material - Check Valves: FKM; Spring Material - Check Valves: 302 Stainless Steel; Full Flow - Valves: Yes; Application - Valves: General Purpose; Length: 2 1/8 in; Standards: RoHS Compliant

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Spring
Body Material - Valves316 Stainless Steel
Pipe or Tube Size - Check Valves1/4 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves3.6 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesFKM
Max. Temp. - Valves356 Degrees F
Min. Temp. - Valves-4 Degrees F
Max. Water Pressure - Valves580 psi
Max. Steam Pressure - ValvesNot Rated
Seat Material - Check ValvesFKM
Spring Material - Check Valves302 Stainless Steel
Full Flow - ValvesYes
Application - ValvesGeneral Purpose
Length2 1/8 in
StandardsRoHS Compliant
