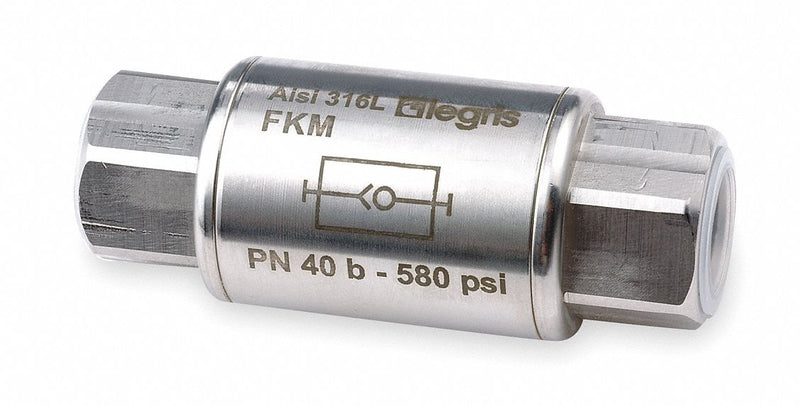

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Inline Spring; Body Material - Valves: 316 Stainless Steel; Pipe or Tube Size - Check Valves: 3/8 in; Connection Type - Check Valves: FNPT x FNPT; Cracking Pressure - Check Valves: 3.6 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: FKM; Max. Temp. - Valves: 356 Degrees F; Min. Temp. - Valves: -4 Degrees F; Max. Water Pressure - Valves: 580 psi; Max. Steam Pressure - Valves: Not Rated; Seat Material - Check Valves: FKM; Spring Material - Check Valves: 302 Stainless Steel; Full Flow - Valves: Yes; Application - Valves: General Purpose; Length: 2 7/8 in; Standards: RoHS Compliant
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Spring |
| Body Material - Valves | 316 Stainless Steel |
| Pipe or Tube Size - Check Valves | 3/8 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 3.6 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | FKM |
| Max. Temp. - Valves | 356 Degrees F |
| Min. Temp. - Valves | -4 Degrees F |
| Max. Water Pressure - Valves | 580 psi |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | FKM |
| Spring Material - Check Valves | 302 Stainless Steel |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 2 7/8 in |
| Standards | RoHS Compliant |
