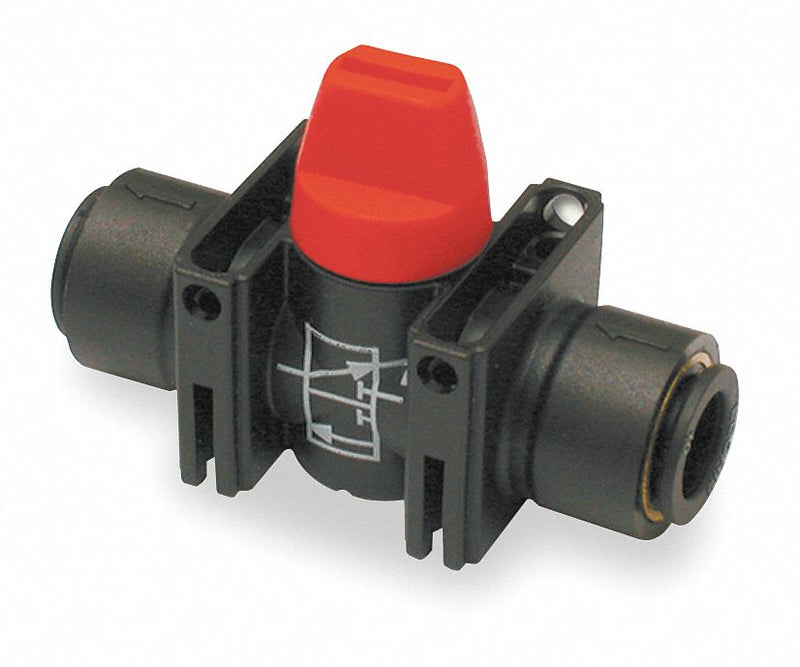

Function Fittings, Metric valves have BSPP threads,Compact push-to-connect valves include both an internal and external hex for easy, tool-free tightening and assembly. Nylon and nickel-plated brass construction, except where noted. Polypropylene push button and Buna nitrile elastomer seals for leak-free connections. For use with polyurethane, polyethylene, or PTFE tubing.,Mini Ball Valves, Max. pressure: 145 psi WOG? Temp. range: -4 to 175F,Enable in-line pneumatic circuit opening and closing.
| Item | Mini Ball Valve |
| Body Material | Glass-Filled Nylon |
| Body Style | Inline |
| General Connection Type | Push |
| Valve Structure | 1-Piece |
| Tube Size | 1/4 in |
| Connection Type | Push x Push |
| Port | Full |
| Max. Pressure | 145 psi CWP |
| Temp. Range | -4 Degrees F to 176 Degrees F |
| Ball Material | Glass Filled Nylon |
| Seat Material | Buna-N |
| Handle Type | Screw Driver Slot Compact Handle |
| Handle Material | Technical Polymer |
| Stem Material | Brass |
| Body Seal Material | Buna-N |
| Features | Can Be Mounted On A Wall or Adjacent Surface Using Staples, For Compressed Air Only |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Plastic |
| Standards | RoHS Compliant |
