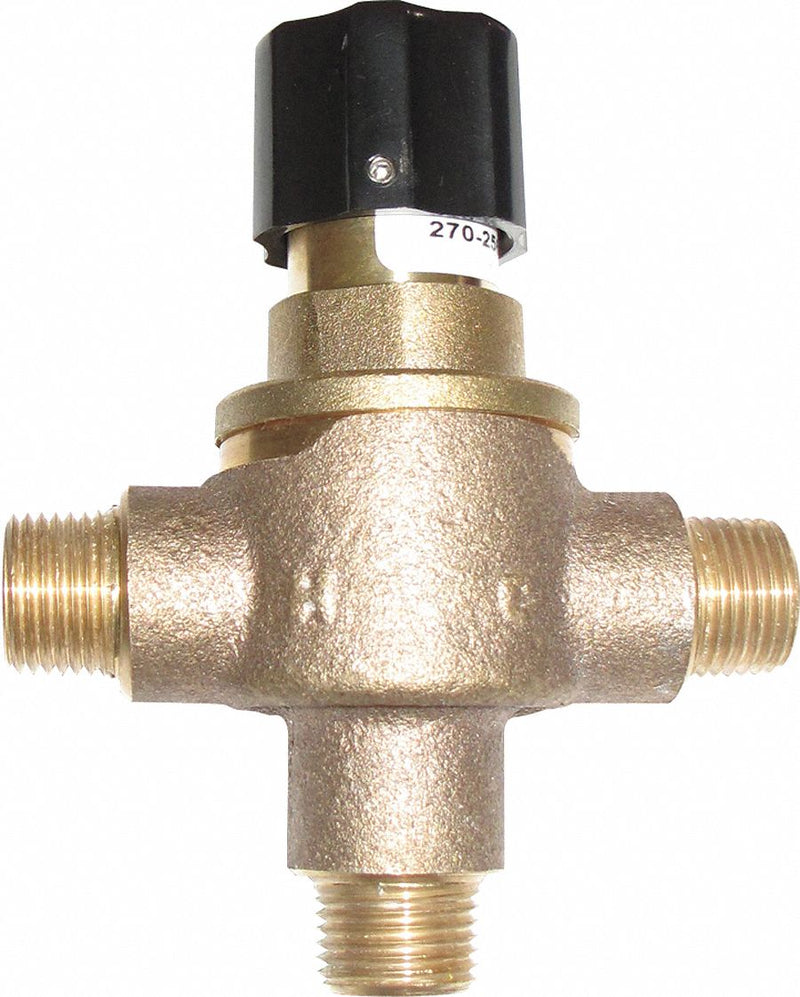

Leonard 1/2 in MNPT Inlet Type Mixing Valve, Bronze, 0.25 to 12 gpm - 270-LF

Leonard ValveSKU: C1931503
MPN : 270-LF
Weight : 1.95 lb


$117.71 $189.85

Availability : Usually Ships in 1-3 Business Days

Low-Lead Point of Use Mixing Valves,Hot water temperature control valves are specifically designed for mixing cold and hot water on hot water supply systems. Can be used for various applications to reduce the temperature of hot water from the system and are ideal for radiant heat applications. Can be used in under-the-sink applications to help prevent scalding in commercial and residential applications.,Certified for use in potable water applications.

ItemMixing Valve
Body MaterialBronze
Flow Rate0.25 to 12 gpm
Inlet TypeMNPT
Outlet TypeMNPT
Inlet Size1/2 in
Outlet Size1/2 in
Temp. Range90 Degrees to 140 Degrees F
Max. Pressure125 psi
Overall Height5 in
Overall Width4 in
Inlet Temperature (Hot)120 Degrees to 200 Degrees F
StandardsASSE 1017, ASSE 1070, Lead Free
