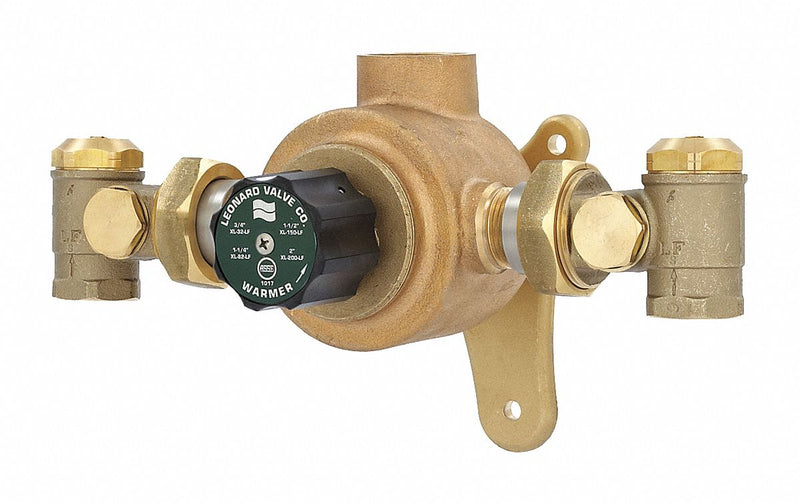

Leonard 1 in NPT Inlet Type Mixing Valve, Lead Free bronze, 1 to 58 gpm - XL-82-LF-BDT
filler
Availability : Usually Ships in 10 Business Days
Single valve for high and low water flows. Copper encapsulated thermostat. Ideal for industrial and commercial applications and certified for use in potable water applications.
| Item | Mixing Valve |
| Body Material | Lead Free bronze |
| Flow Rate | 1 to 58 gpm |
| Inlet Type | NPT |
| Outlet Type | NPT |
| Inlet Size | 1 in |
| Outlet Size | 1 1/4 in |
| Temp. Range | 95 Degrees to 135 Degrees F |
| Max. Pressure | 125 psi |
| Overall Height | 3 in |
| Overall Width | 6 in |
| Inlet Temperature (Cold) | 40 Degrees to 85 Degrees F |
| Inlet Temperature (Hot) | 120 Degrees to 200 Degrees F |
| For Use With | Domestic Hot Water Applications |
| Includes | Check Stop, Wall Support |
| Standards | ASSE 1017, Lead Free |
| Compliance | Lead Free |
