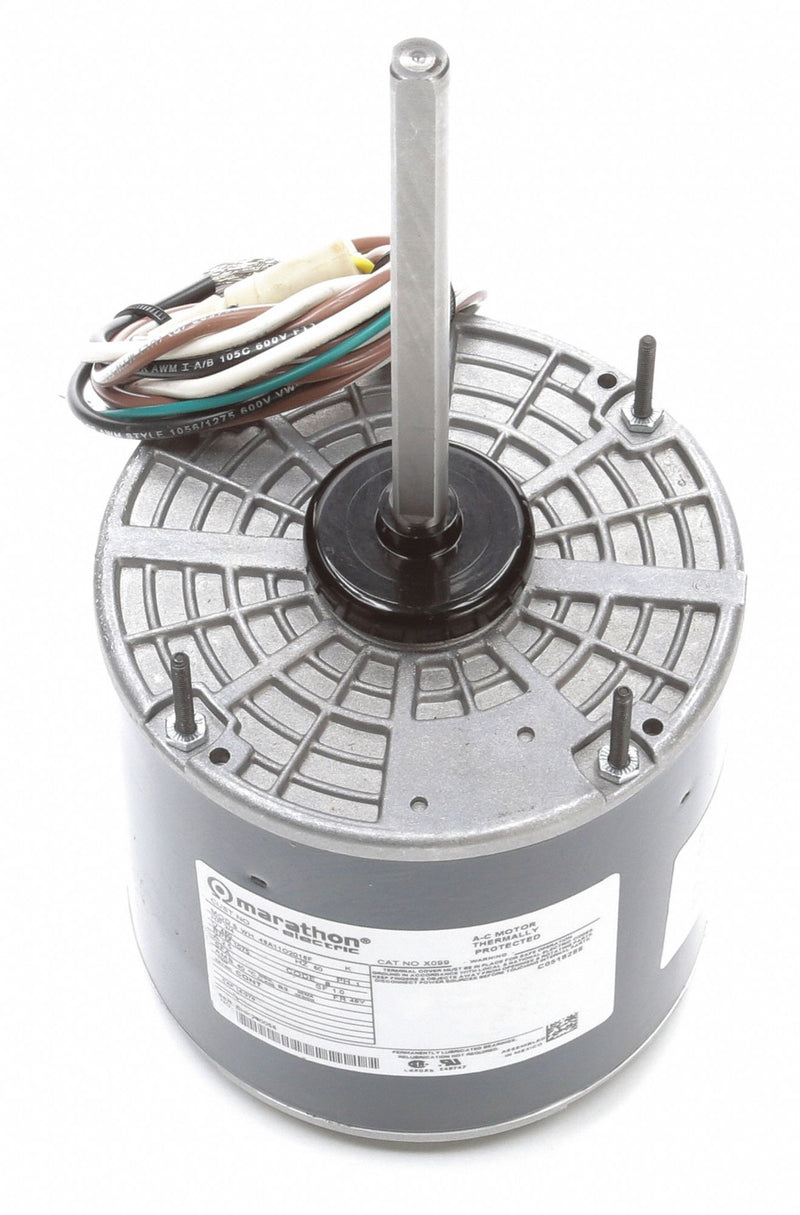

| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 3/4 |
| No. of Speeds | 1 |
| Voltage | 460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48 |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | Horizontal |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 40 Degrees C |
| Nameplate RPM | 1075 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 2.5 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 12 11/16 in |
| Length Less Shaft | 6 3/16 in |
| Body Dia. | 5 11/16 in |
| Bolt Circle Dia. | 3 5/8 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | 8-32 |
| Nominal Efficiency | 65.5 % |
| Lead Length | 4 to 30 in |
| Motor Shaft Design | Double-Flat |
| Features | Shaft Up or Horizontal, Thru-Bolt |
| Duty | Continuous |
| Capacitor Required | 2MDV9 |
| Application | General Purpose |
