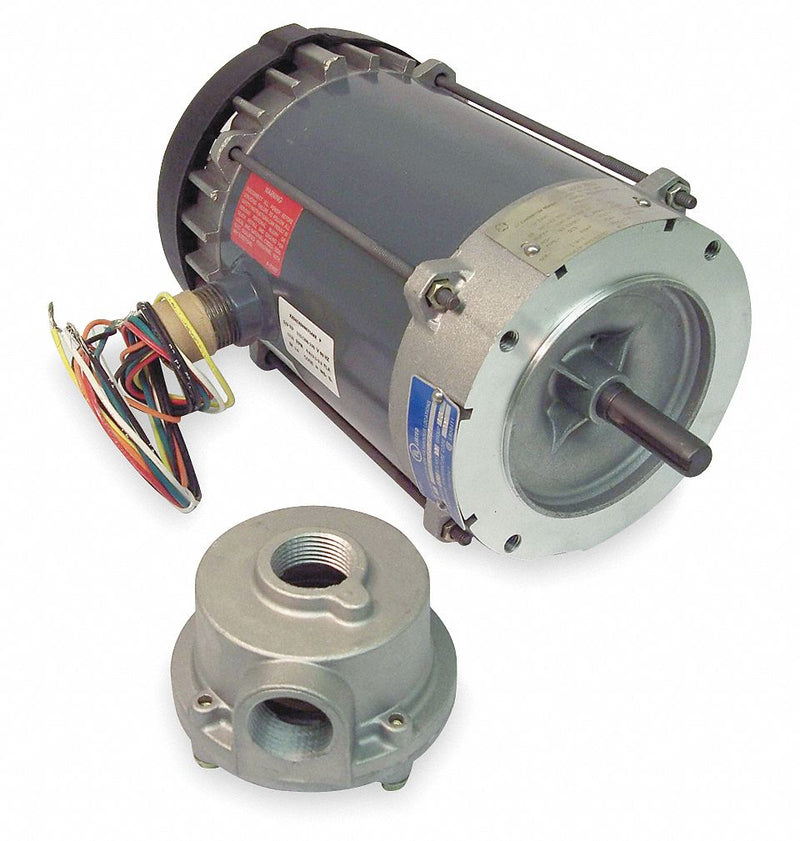

1-phase hazardous location motor has a sturdy rolled-steel frame and meets the National Electrical Code for hazardous locations. Unmounted conduit box is included with all 56-frame motors. Use to power fans, blowers, pumps, or air compressors in areas that meet the National Electrical Code for hazardous locations.
| Item | Hazardous Location Motor |
| Motor Application | Hazardous Location |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 3/4 |
| Nameplate RPM | 1725 |
| Frame | 56C |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/208-230 |
| Full Load Amps | 11/5.4-5.5 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Hazardous Location Class | 1 C,D / 2 E,F,G |
| Max. Ambient Temp. | 40 Degrees C |
| Temp. Code | T3B |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 12 3/8 in |
| Overall Length | 14 7/16 in |
| Lead Length | 6 in |
| Ins. Class | B |
| Duty | Continuous |
| Nominal Efficiency | 86.5 % |
| Motor Efficiency Group | Standard Efficient |
| Includes | Conduit Box (Unmounted), Leads Through 1 in NPT Nipple |
| Standards | CSA Certified (LR47504), UL Listed (E12044) |
