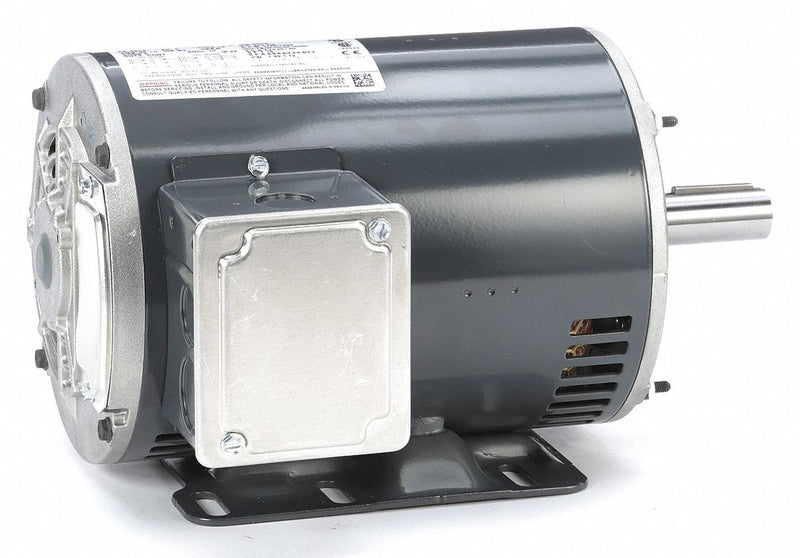

Marathon 056T17D3303 - Motor 3-Ph 2 HP 1725 RPM 208-230/460V

MarathonSKU: C2903303
MPN : 056T17D3303
Weight : 35.0 lb

filler

Price:
$664.75 $1,072.17

Availability : Usually Ships in 10 Business Days
ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP2
Nameplate RPM1725
Frame56HZ
Voltage208-230/460
Hz60/50
Phase3
Full Load Amps6.2-6.2/3.1
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft9 11/16 in
Overall Length12 in
Motor Shaft DesignKeyed
StandardsCSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency85.5 %
Inverter RatedYes
Manufacturers Warranty Length1 yr
