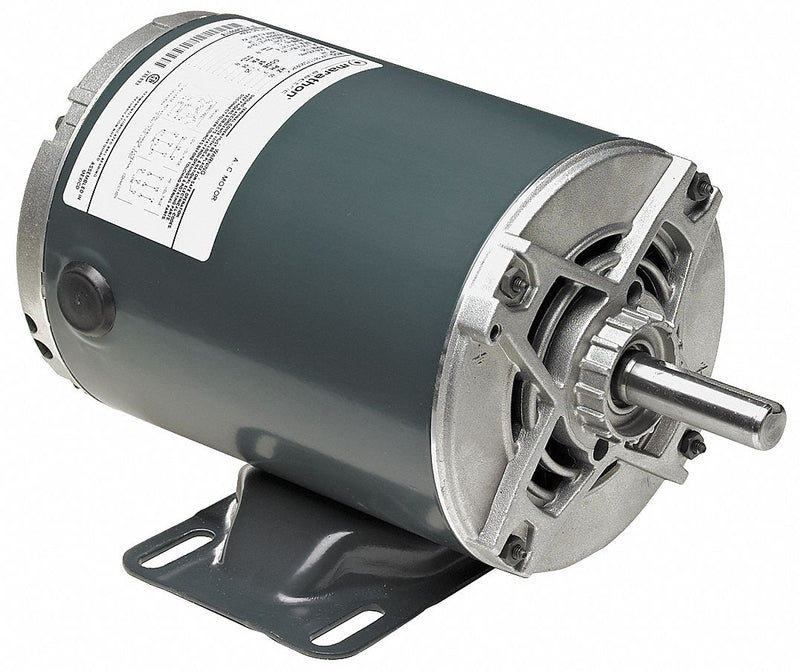

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 1; Nameplate RPM: 1725; Frame: 56H; Voltage: 208-230/460; Hz: 60/50; Phase: 3; Full Load Amps: 3.2-3/1.5; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: Manual; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Length Less Shaft: 12 1/8 in; Overall Length: 14 in; Motor Shaft Design: Keyed; Standards: CE, CSA (LR2025), UL (E49747); Duty: Continuous; Motor Efficiency Group: Premium Efficient; Nominal Efficiency: 85.5 %; Inverter Rated: No; Manufacturers Warranty Length: 1 yr
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| Nameplate RPM | 1725 |
| Frame | 56H |
| Voltage | 208-230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 3.2-3/1.5 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | Manual |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 12 1/8 in |
| Overall Length | 14 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA (LR2025), UL (E49747) |
| Duty | Continuous |
| Motor Efficiency Group | Premium Efficient |
| Nominal Efficiency | 85.5 % |
| Inverter Rated | No |
| Manufacturers Warranty Length | 1 yr |
