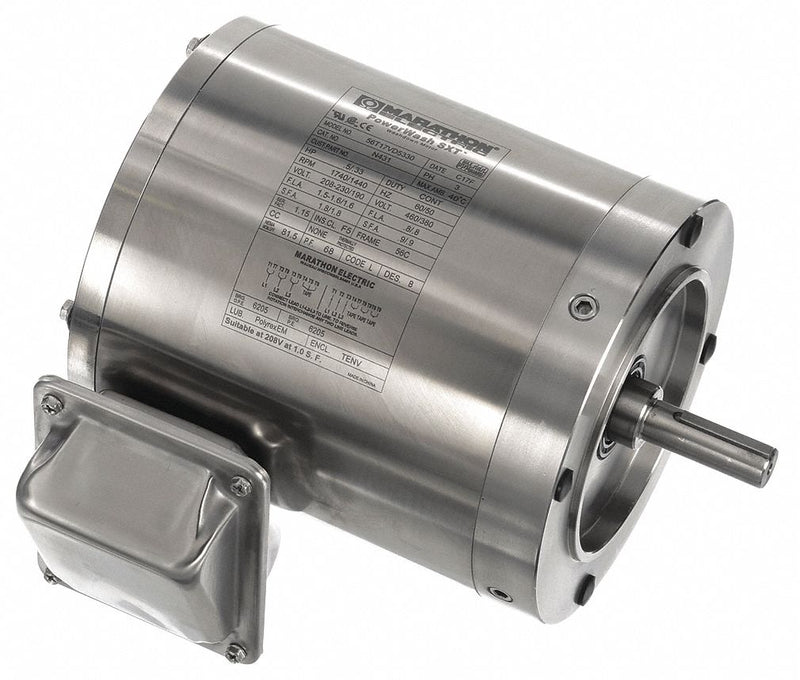

| Item | Washdown Motor |
| Motor Application | Washdown |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/2 |
| Nameplate RPM | 1740 |
| Frame | 56C |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 1.5-1.6/.8 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Motor Frame Material | Stainless Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Motor Shaft Design | Keyed |
| Body Dia. | 6 1/2 in |
| Length Less Shaft | 7 3/4 in |
| Overall Length | 9 3/4 in |
| Ins. Class | F |
| RPM Range | 1701-1800 |
| Duty | Continuous |
| Shaft Material | 303 Stainless Steel |
| Drain Plugs | (4) Each End and (2) In Conduit Box |
| Endshields | 300 Series Stainless Steel |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 81.5 % |
| Application | Washguard |
| Standards | CE, CSA Certified (LR2025), UL Recognized (E49747) |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 23 |
