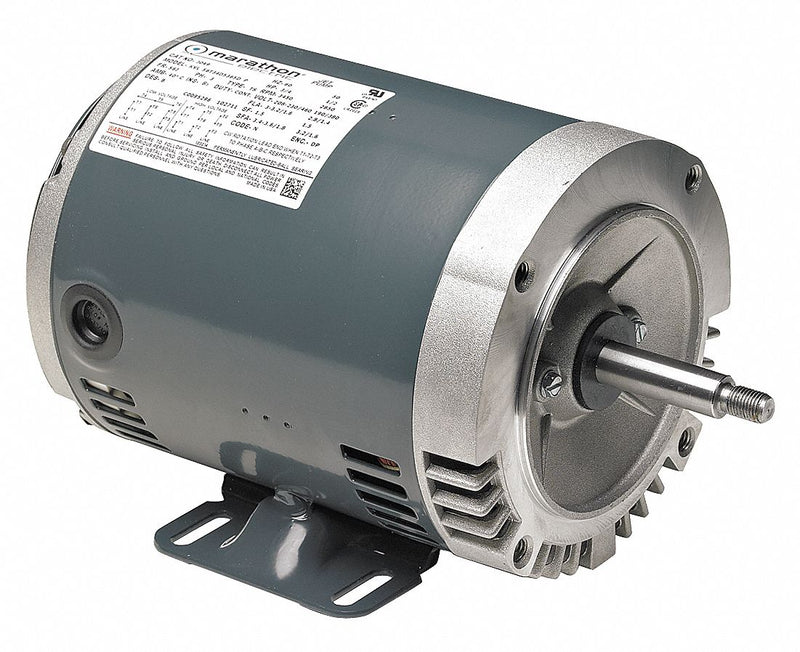

Jet Pump Motor; Motor Application: Pump; Motor Sub Application: Jet Pump; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 1/3; Nameplate RPM: 3450; Frame: 56J; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 1.1/0.55; Phase: 3; Hz: 60/50; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal or Vertical Shaft Down; Motor Bearings: Ball; Motor Thermal Protection: None; Motor Service Factor: 1.75; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 2 9/16 in; Motor Shaft Design: Threaded; Shaft Material: Stainless Steel; Overall Length: 10 7/16 in; Body Dia.: 5 33/50 in; Ins. Class: B; Duty: Continuous; Motor Efficiency Group: Standard Efficient; Nominal Efficiency: 67.7 %; Includes: Drip Cover, Shaft Slinger; Standards: CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
