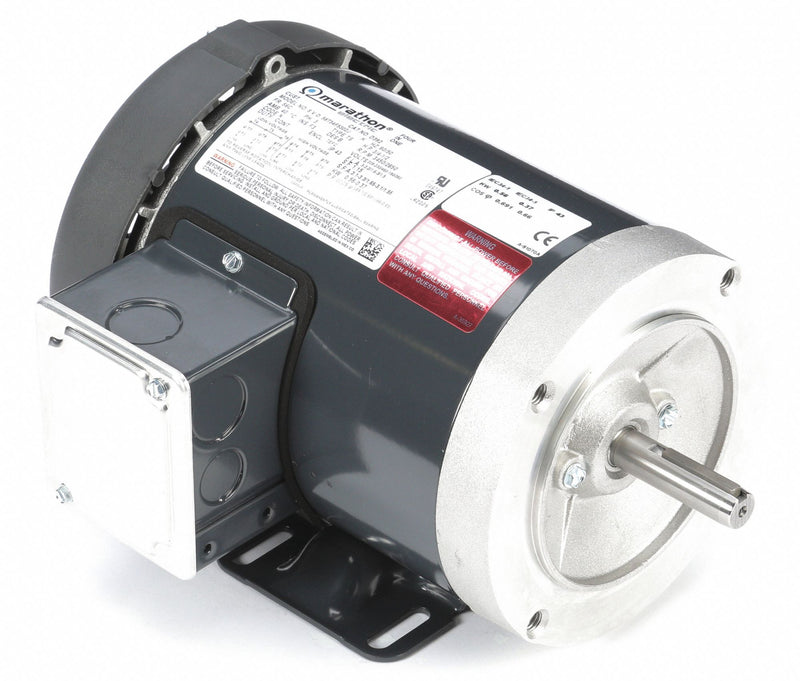

| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 3/4 |
| Nameplate RPM | 3450 |
| Frame | 56C |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 3.2/1.6 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face/Base |
| Motor Thermal Protection | Auto |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 9 3/4 in |
| Overall Length | 11 7/8 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 86.5 % |
| Manufacturers Warranty Length | 1 yr |
