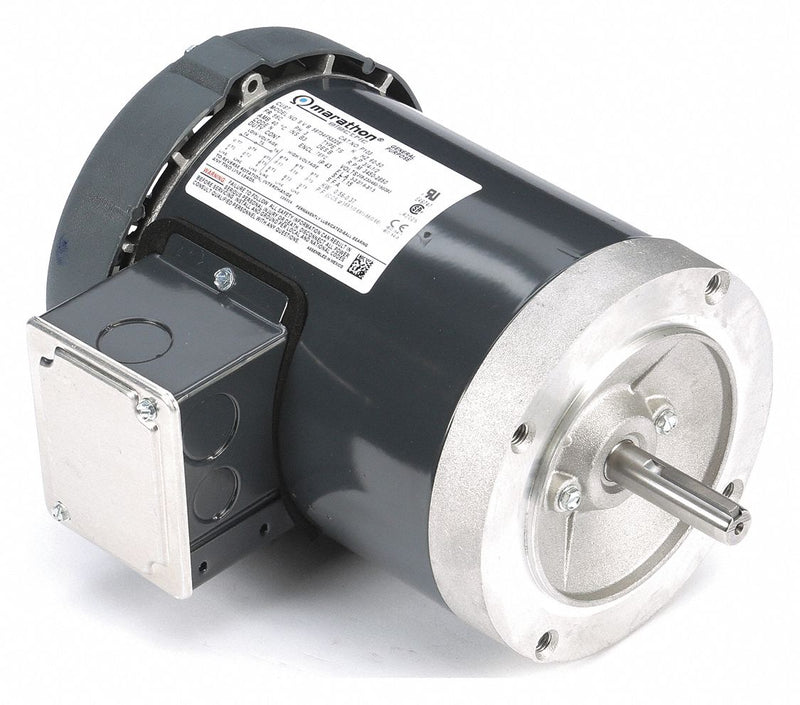

Marathon 056T34F5322 - Motor 3/4 HP 3450 RPM 208-230/460V 56C

MarathonSKU: C2903154
MPN : 056T34F5322
Weight : 22.35 lb

filler

Price:
$234.01 $285.38

Availability : Usually Ships Within 5-7 Business Days
ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP3/4
Nameplate RPM3450
Frame56C
Voltage208-230/460
Hz60/50
Phase3
Full Load Amps3-3.2/1.6
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft9 7/8 in
Overall Length11 13/16 in
Motor Shaft DesignKeyed
StandardsCSA, UL
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency85.5 %
Manufacturers Warranty Length1 yr
