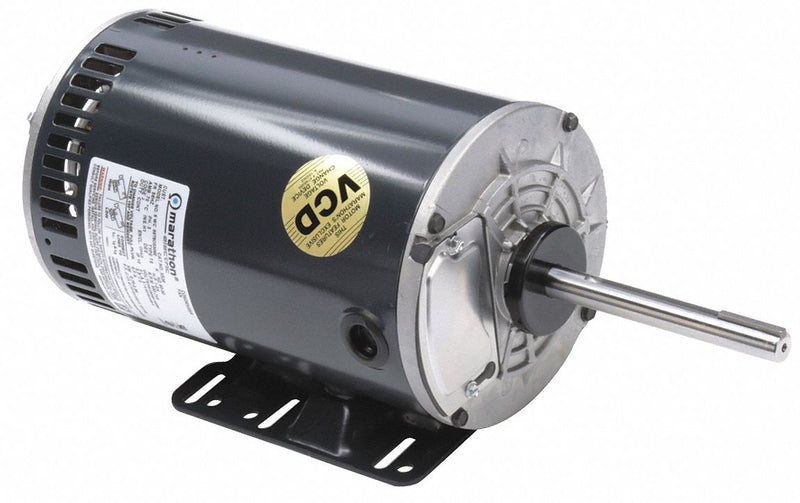

This 3-phase condenser fan motor features an open air-over enclosure design. Use to operate condenser fans in refrigeration or air conditioning equipment.
| Item | Condenser Fan Motor |
| Motor Design | 3-Phase |
| Phase | 3 |
| HP | 1 |
| No. of Speeds | 1 |
| Voltage | 208-230/460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 56HZ |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Vertical Shaft Up |
| Shaft Dia. | 5/8 in |
| Shaft Length | 5 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 70 Degrees C |
| Nameplate RPM | 850 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60/50 |
| Full Load Amps | 5.1-5.3/2.6 |
| Ins. Class | H |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 17 5/8 in |
| Length Less Shaft | 12 5/8 in |
| Body Dia. | 6 1/2 in |
| Nominal Efficiency | 74.5 % |
| Motor Shaft Design | Keyed with Single Flat |
| Duty | Continuous |
| Application | Condenser Fan |
| Standards | CSA Certified (LR2025), UL Recognized (E6312) |
