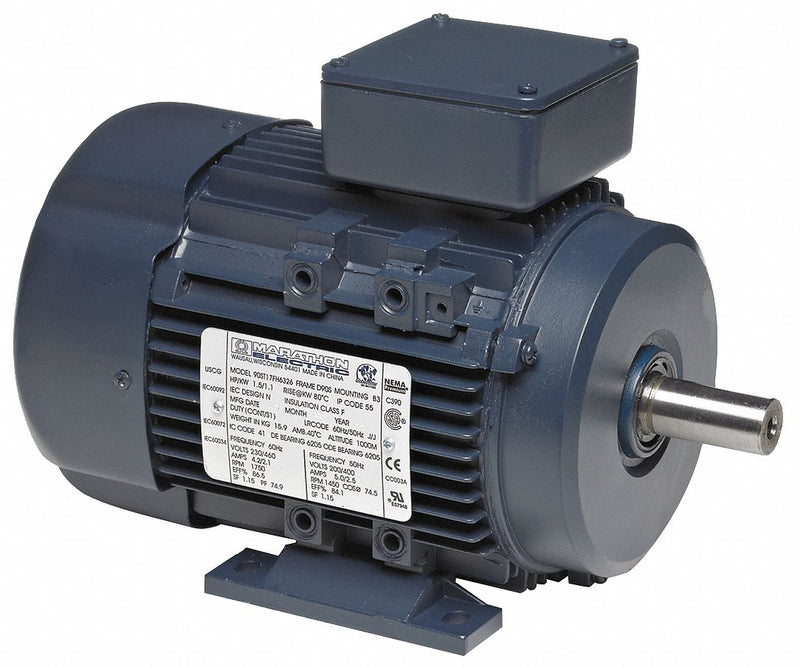

Marathon Motors 1 HP Metric Motor,3-Phase,3420 Nameplate RPM,575 Voltage,Frame D80 - 080T34FH15305

MarathonSKU: C2791468
MPN : 080T34FH15305
Weight : 47.0 lb

filler

Price:
$562.48 $907.23

Availability : Usually Ships in 10-15 Business Days

Metric Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1; kW: 0.75; Nameplate RPM: 3420; Frame: D80; Voltage: 575; Hz: 60; Phase: 3; Full Load Amps: 1.2; Motor Mounting Type: Rigid Base; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Cast Aluminum; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 91.7 %; CC Number: CC003A; Duty: Continuous; Manufacturers Warranty Length: 1 yr; Standards: CSA (LR2025), UL (E49747); Voltage Compatibility: 575; Green Certification or Other Recognition: NEMA Premium(R) Rated

ItemMetric Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1
kW0.75
Nameplate RPM3420
FrameD80
Voltage575
Hz60
Phase3
Full Load Amps1.2
Motor Mounting TypeRigid Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Aluminum
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency91.7 %
CC NumberCC003A
DutyContinuous
Manufacturers Warranty Length1 yr
StandardsCSA (LR2025), UL (E49747)
Voltage Compatibility575
Green Certification or Other RecognitionNEMA Premium(R) Rated
