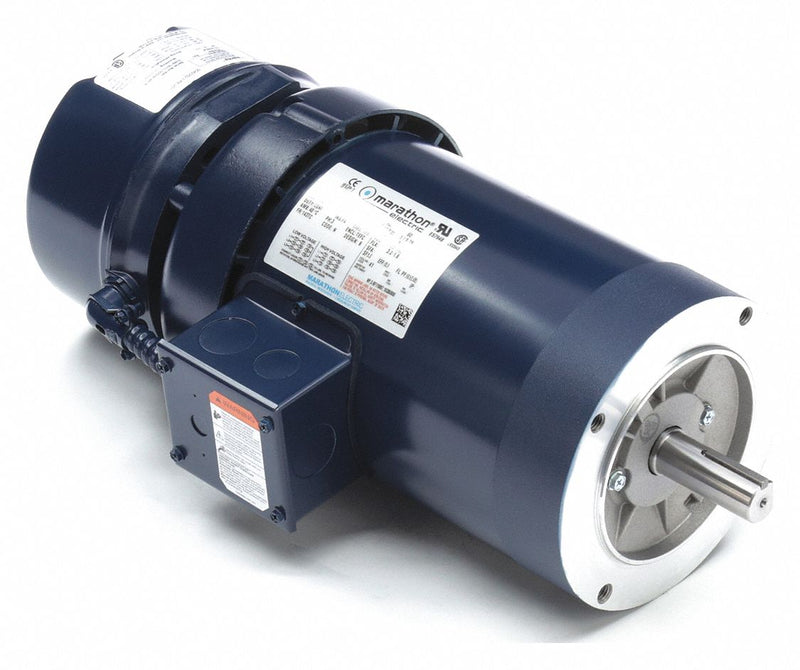

Brake Motor; Motor Application: Brake Motor; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1; Nameplate RPM: 1760; Frame: 143TC; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 3.2/1.6; Motor Mounting Type: Face; Brake Rating: 6 ft-lb; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Ambient Temperature: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 7/8 in; Shaft Length: 2 in; Length Less Shaft: 15 3/4 in; Nominal Efficiency: 85.5 %; Motor Efficiency Group: NEMA Premium Efficient; CC Number: CC003A; RPM Range: 1701-1800; Voltage Compatibility: 208-230/460; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | Brake Motor |
| Motor Application | Brake Motor |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 |
| Nameplate RPM | 1760 |
| Frame | 143TC |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 3.2/1.6 |
| Motor Mounting Type | Face |
| Brake Rating | 6 ft-lb |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 in |
| Length Less Shaft | 15 3/4 in |
| Nominal Efficiency | 85.5 % |
| Motor Efficiency Group | NEMA Premium Efficient |
| CC Number | CC003A |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208-230/460 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
