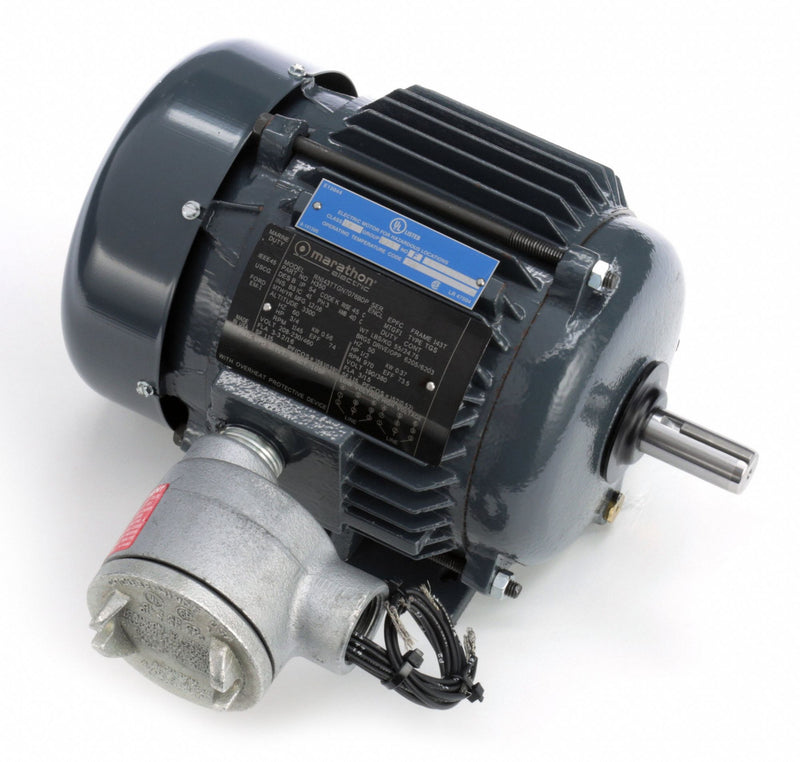

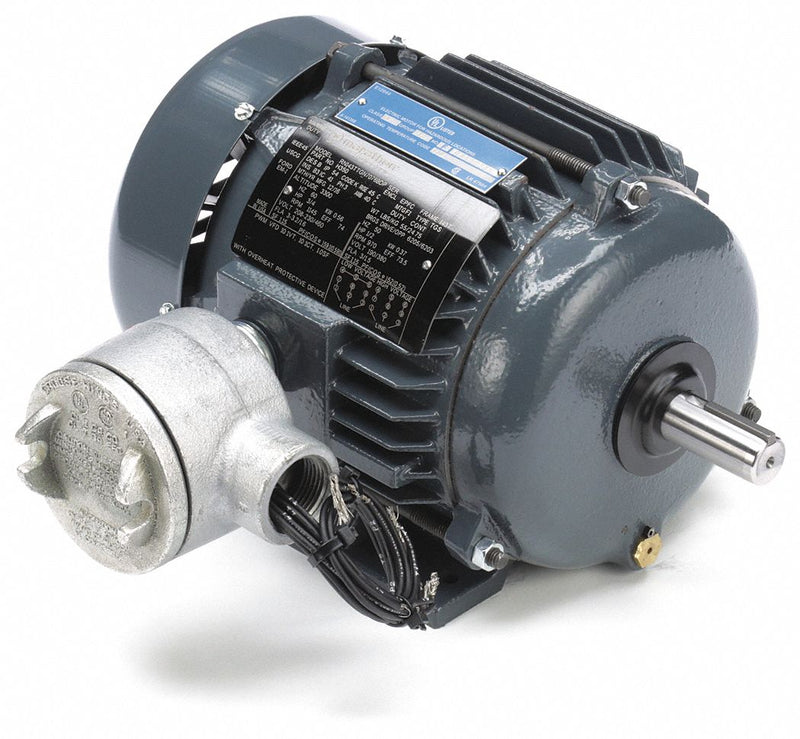

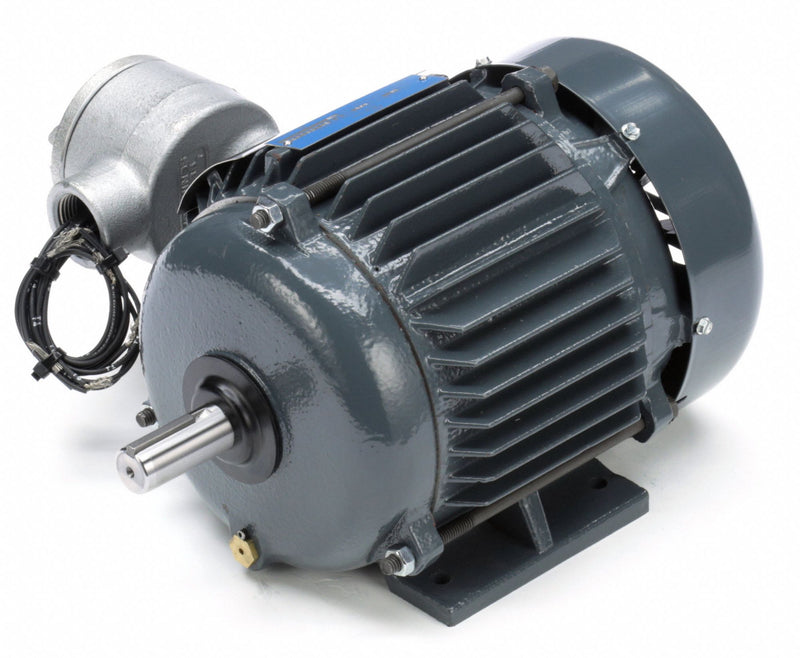

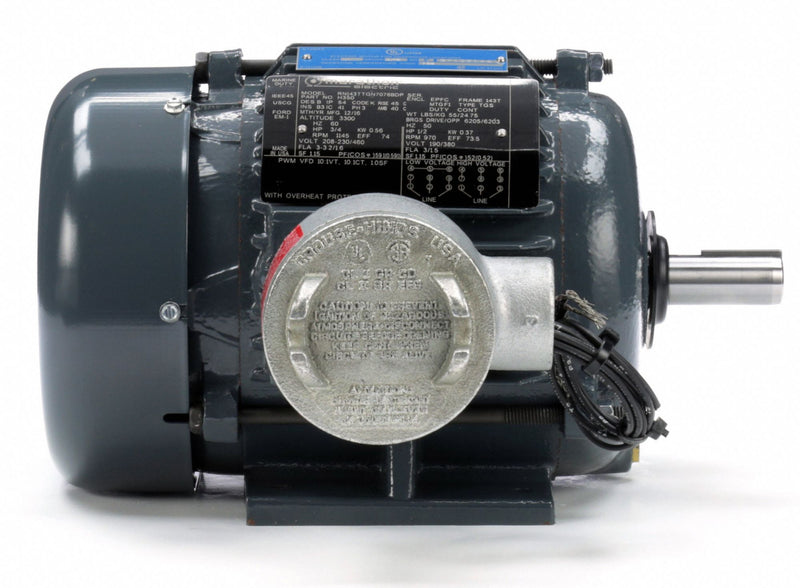

This 3-Phase Hazardous Location Motor is suitable for use in hazardous location applications.
| Item | Hazardous Location Motor |
| Motor Application | Hazardous Location |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 3/4 |
| Nameplate RPM | 1145 |
| Frame | 143T |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 3.1-3.2/1.6 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | T-Stat |
| Motor Service Factor | 1.15 |
| Hazardous Location Class | 1 D / 2 F,G |
| Max. Ambient Temp. | 40 Degrees C |
| Temp. Code | T3B |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Overall Length | 12 7/16 in |
| Ins. Class | B |
| Duty | Continuous |
| Nominal Efficiency | 85.5 % |
| Motor Efficiency Group | Standard Efficient |
| Includes | (11)-12 in Leads through 1/2 NPT Nipple |
| Standards | UL Listed (E12044); CSA Certified (LR47504) |
