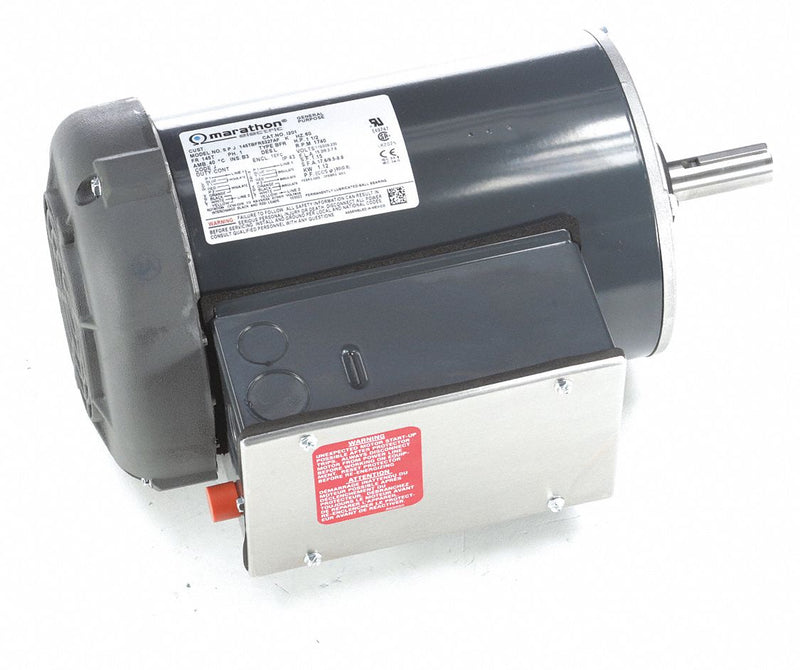

Marathon Motors 1 1/2 HP, General Purpose Motor, Capacitor-Start/Run, 1740 Nameplate RPM, 115/208-230 Voltage - 145TBFR5327

MarathonSKU: C2903234
MPN : 145TBFR5327
Weight : 41.1 lb
filler

Price:
$531.99 $648.77

Availability : Usually Ships in 1-3 Business Days

Designed for air moving equipment, this general purpose motor helps keep fans moving. It features a totally enclosed, fan-cooled enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM1740
Frame145T
Voltage115/208-230
Hz60
Phase1
Full Load Amps15.2/8.2-7.6
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionManual
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft11 9/16 in
Overall Length13 7/8 in
Motor Shaft DesignKeyed
StandardsCSA (LR2025), UL (E6312)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency86.5 %
Inverter RatedNo
Manufacturers Warranty Length1 yr
