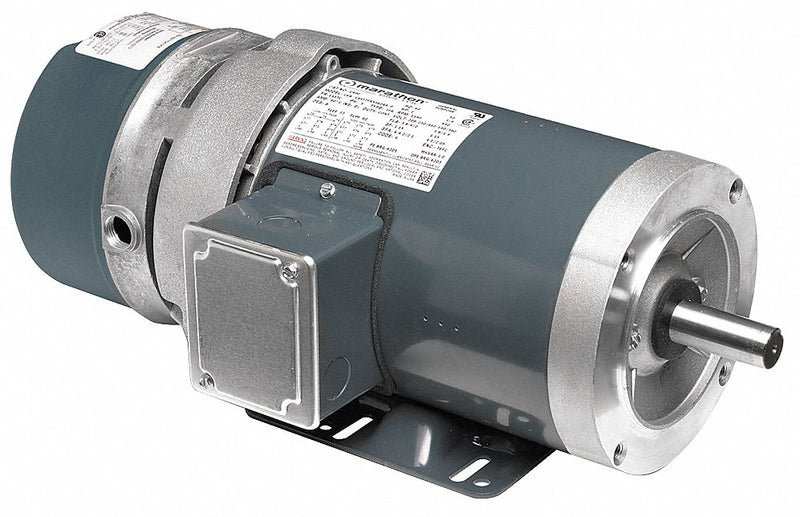

Marathon Motors 1 1/2 HP Brake Motor,3-Phase,1755 Nameplate RPM,230/460 Voltage,Frame 145TC - 145TTFR16360

MarathonSKU: C2792036
MPN : 145TTFR16360
Weight : 55.7 lb
filler

Price:
$1,122.65 $1,369.09

Availability : Usually Ships in 1-3 Business Days

Brake Motor; Motor Application: Brake Motor; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1 1/2; Nameplate RPM: 1755; Frame: 145TC; Voltage: 230/460; Hz: 60/50; Phase: 3; Full Load Amps: 4.6/2.3; Motor Mounting Type: Rigid Base; Brake Rating: 10 ft-lb; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Ambient Temperature: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 7/8 in; Shaft Length: 2 1/8 in; Length Less Shaft: 16 5/8 in; Nominal Efficiency: 86.5 %; Motor Efficiency Group: NEMA Premium Efficient; CC Number: CC003A; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated

ItemBrake Motor
Motor ApplicationBrake Motor
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM1755
Frame145TC
Voltage230/460
Hz60/50
Phase3
Full Load Amps4.6/2.3
Motor Mounting TypeRigid Base
Brake Rating10 ft-lb
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Ambient Temperature40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/8 in
Length Less Shaft16 5/8 in
Nominal Efficiency86.5 %
Motor Efficiency GroupNEMA Premium Efficient
CC NumberCC003A
RPM Range1701-1800
Voltage Compatibility220-230/460, 230/460, 460
Green Certification or Other RecognitionNEMA Premium(R) Rated
