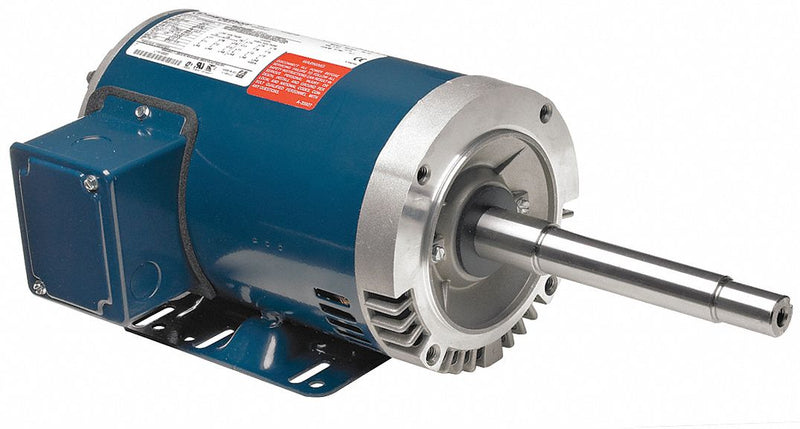

The Marathon Motors close-coupled pump motor is a 3-phase continuous-duty motor for use in commercial and industrial pumping applications. This TEFC motor is suitable for use in dirty, dusty, and nonhazardous applications., JP threaded,Open dripproof,Rigid base
| Item | Close-Coupled Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Fire Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 5 |
| Nameplate RPM | 3505 |
| Frame | 182JP |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 12.4/6.2 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Face/Base |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 7/8 in |
| Shaft Length | 7 5/16 in |
| Motor Shaft Design | JP Threaded |
| Length Less Shaft | 10 5/8 in |
| Overall Length | 17 15/16 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 85.5 % |
| CC Number | CC003A |
| Motor Efficiency Group | Energy Efficient |
| Inverter Rated | Yes |
| Standards | CSA Certified (LR2025), UL Recognized (E49747) |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
