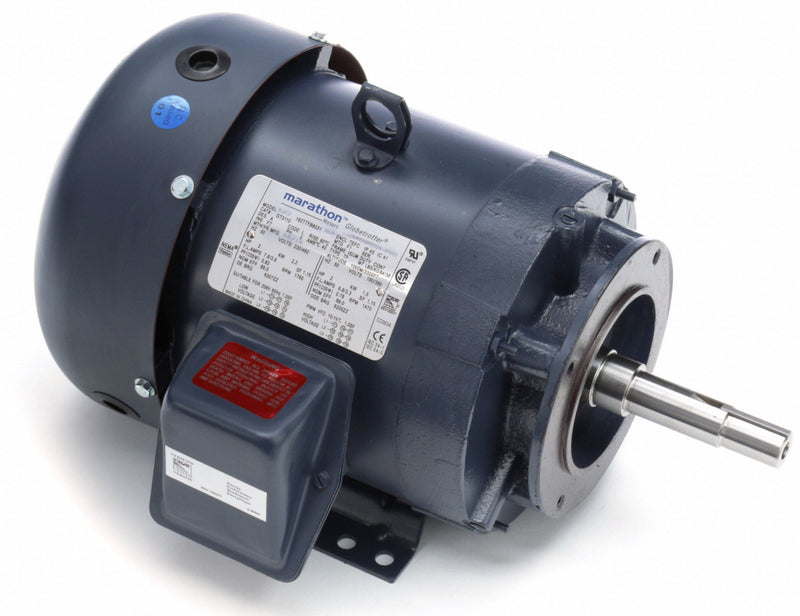

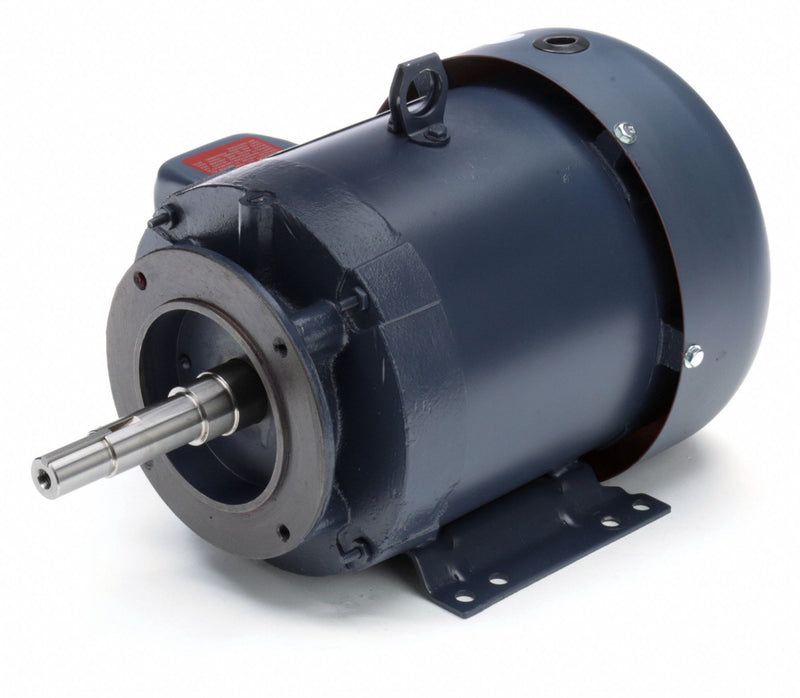

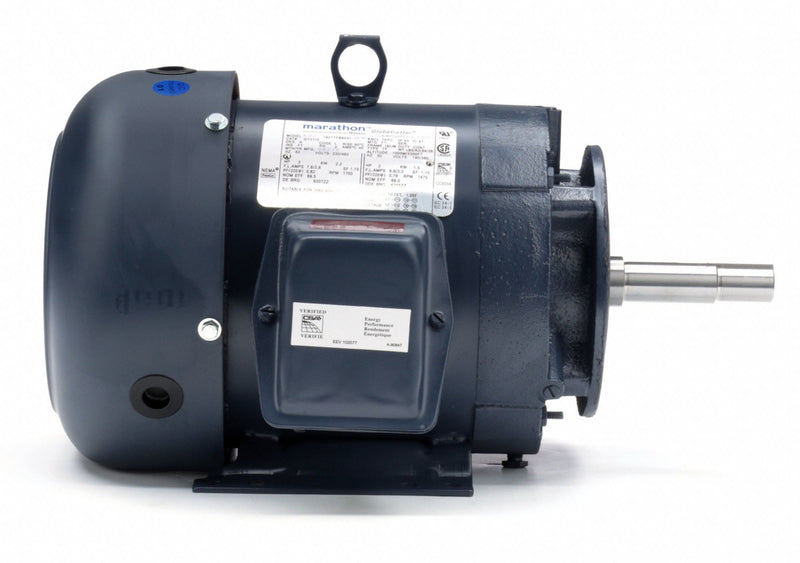

Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 3; Nameplate RPM: 1750; Frame: 182JM; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 7.8/3.9; Phase: 3; Hz: 60/50; Motor Mounting Type: Face/Base; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 4 1/4 in; Motor Shaft Design: Keyed; Length Less Shaft: 13 1/4 in; Overall Length: 17 1/2 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 87.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Inverter Rated: Yes; Standards: CE Compliant, CSA (LR2025), UL (E49747); Voltage Compatibility: 220-230/460, 230/460, 460
| Item | Close-Coupled Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Close-Coupled Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 3 |
| Nameplate RPM | 1750 |
| Frame | 182JM |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 7.8/3.9 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Face/Base |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 7/8 in |
| Shaft Length | 4 1/4 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 13 1/4 in |
| Overall Length | 17 1/2 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 87.5 % |
| CC Number | CC003A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Inverter Rated | Yes |
| Standards | CE Compliant, CSA (LR2025), UL (E49747) |
| Voltage Compatibility | 220-230/460, 230/460, 460 |
