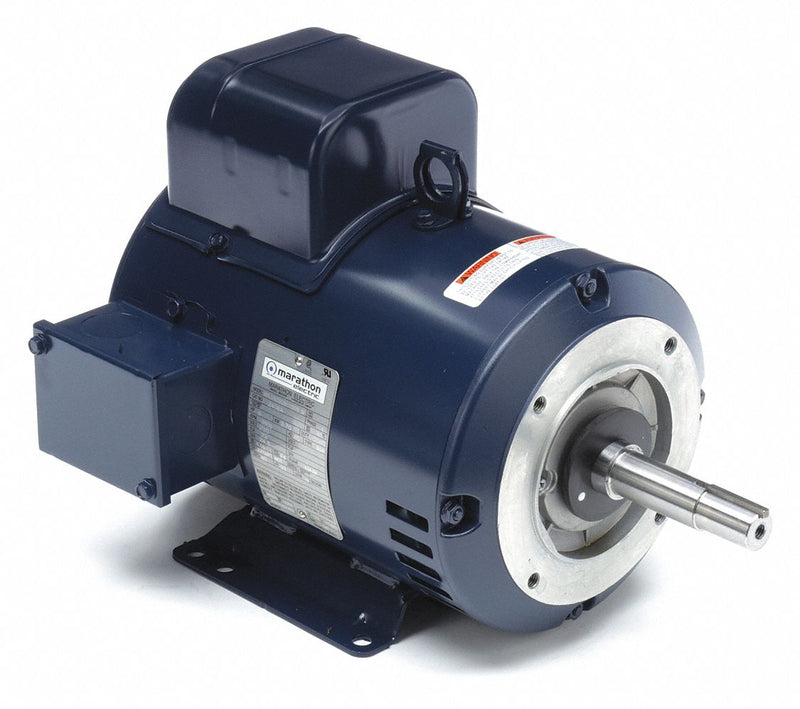

| Item | Close-Coupled Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Close-Coupled Pump |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 5 |
| Nameplate RPM | 3500 |
| Frame | 184JM |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230 |
| Full Load Amps | 22 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face/Base |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 7/8 in |
| Shaft Length | 4 1/4 in |
| Motor Shaft Design | JM Threaded |
| Length Less Shaft | 12 1/16 in |
| Overall Length | 16 5/16 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 80 % |
| Motor Efficiency Group | Standard Efficient |
| Inverter Rated | No |
| Standards | CSA Certified (LR2025), UL Recognized (E49747) |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
