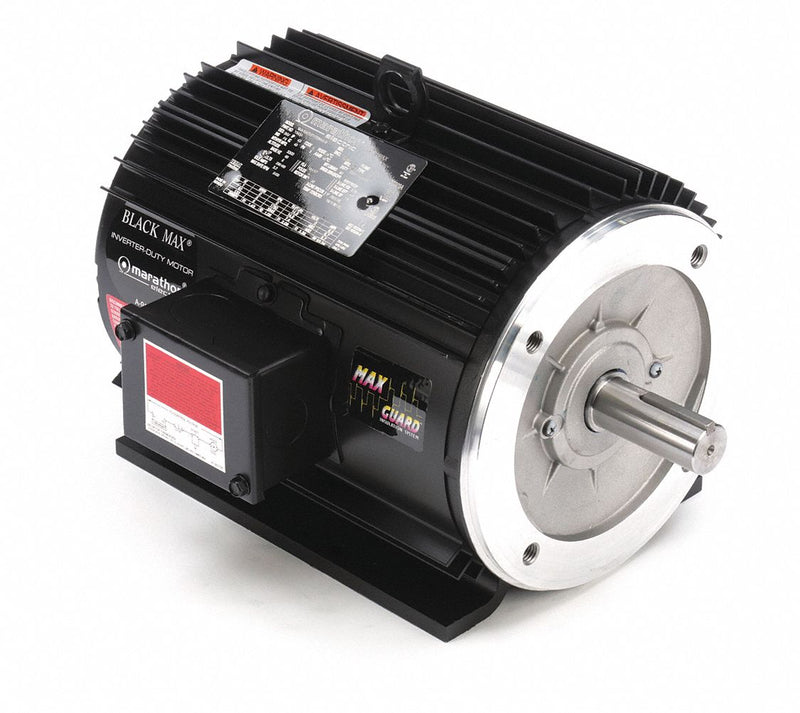

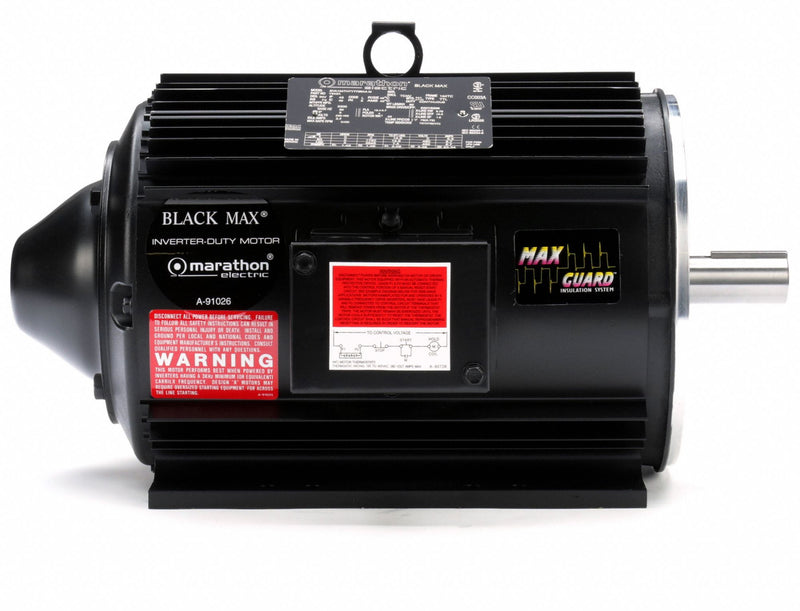

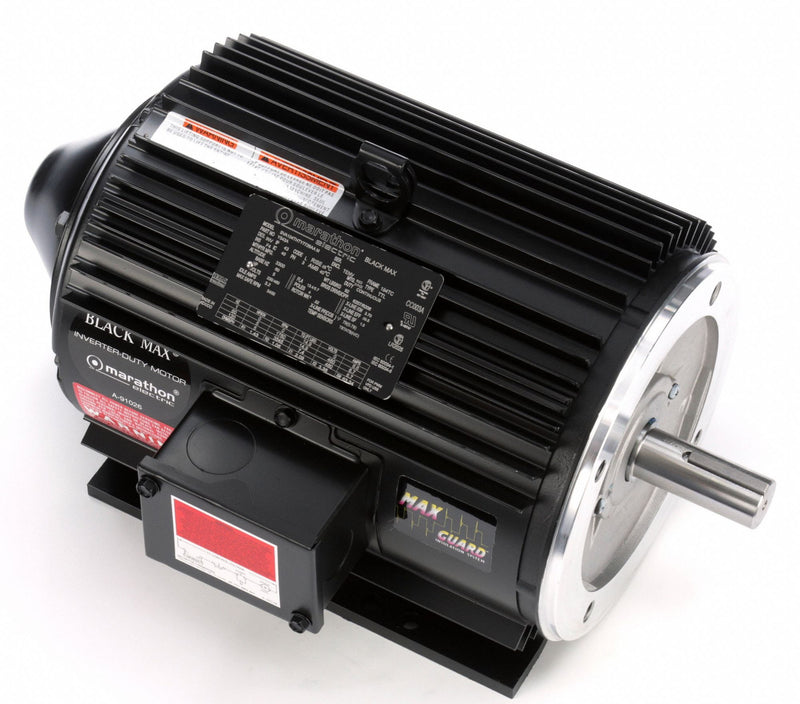

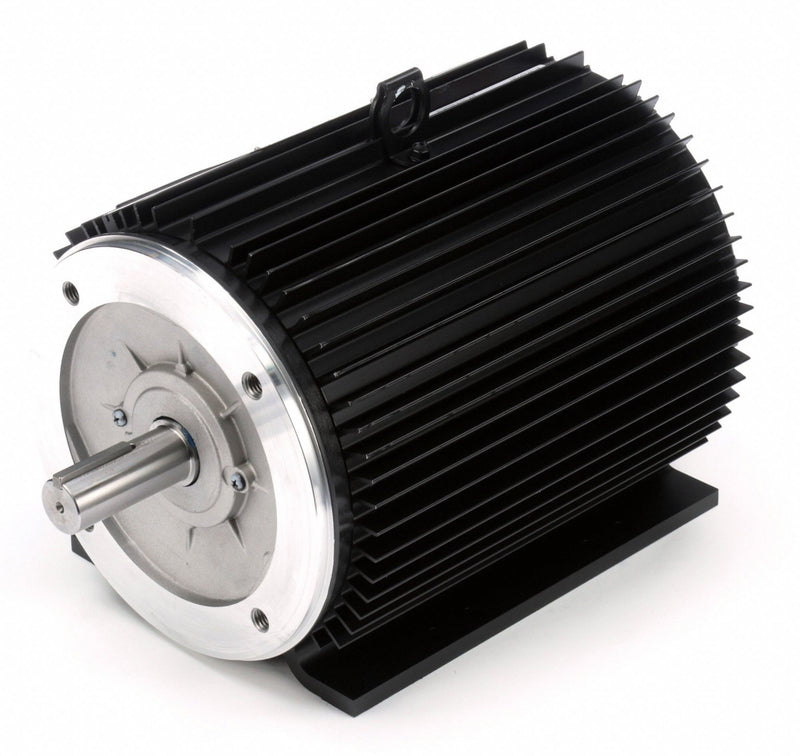

Vector Motor; Motor Application: Variable Speed; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 5; Torque: 14.9 ft-lb; Nameplate RPM: 1760; Speed Range: 1000:1 CT; Max. Speed: 3,600 RPM; Frame: 184TC; Max. Operating Frequency: 120 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 13.4/6.7; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: None; Ins. Class: F; Insulation Feature: Max Guard; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 88.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; NEMA Design: A; Motor Frame Material: Cast Aluminum; Finish: Powder Coat; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: Yes; Motor Shaft Design: Keyed; Shaft Dia.: 1 1/8 in; Shaft Length: 2 5/8 in; Overall Length: 11 11/16 in; Standards: CE, CSA, UL; RPM Range: 1701-1800; Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | Vector Motor |
| Motor Application | Variable Speed |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 5 |
| Torque | 14.9 ft-lb |
| Nameplate RPM | 1760 |
| Speed Range | 1 CT |
| Max. Speed | 3,600 RPM |
| Frame | 184TC |
| Max. Operating Frequency | 120 Hz |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 13.4/6.7 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CW/CCW |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Insulation Feature | Max Guard |
| Ambient Temperature | 40 Degrees C |
| Nominal Efficiency | 88.5 % |
| CC Number | CC003A |
| Motor Efficiency Group | NEMA Premium Efficient |
| NEMA Design | A |
| Motor Frame Material | Cast Aluminum |
| Finish | Powder Coat |
| Base | Rigid |
| Duty | Continuous |
| Encoder Acceptable | Yes |
| Encoder Shaft | Yes |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 5/8 in |
| Overall Length | 11 11/16 in |
| Standards | CE, CSA, UL |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 4 |
