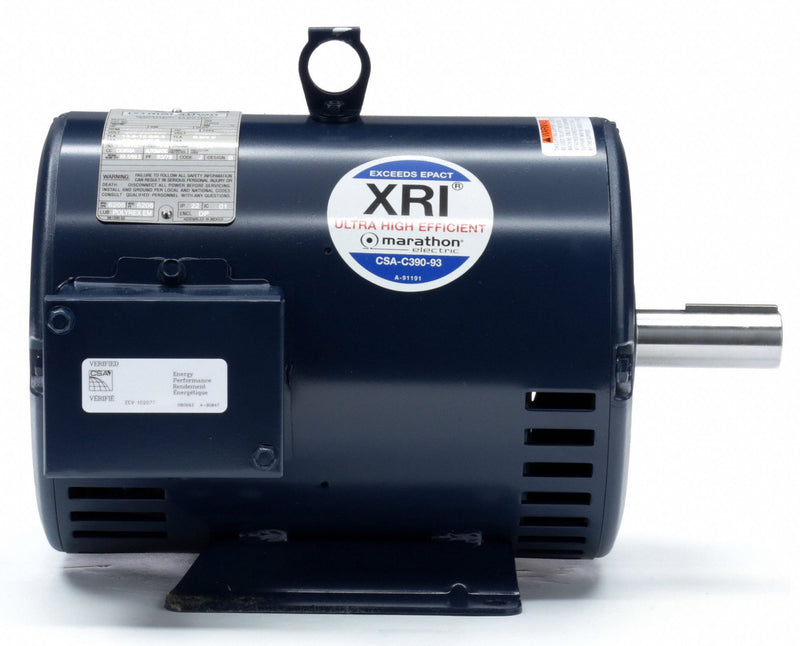

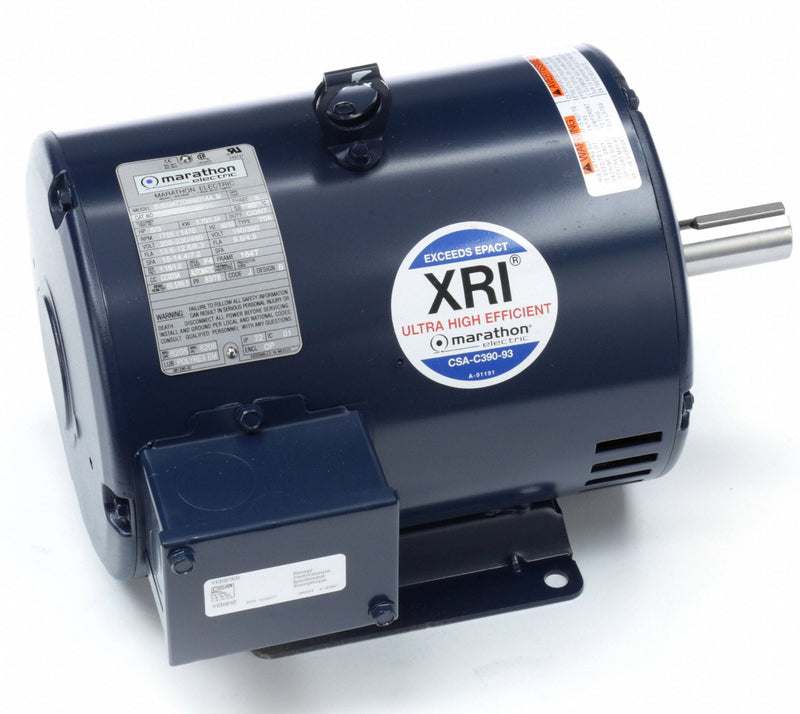

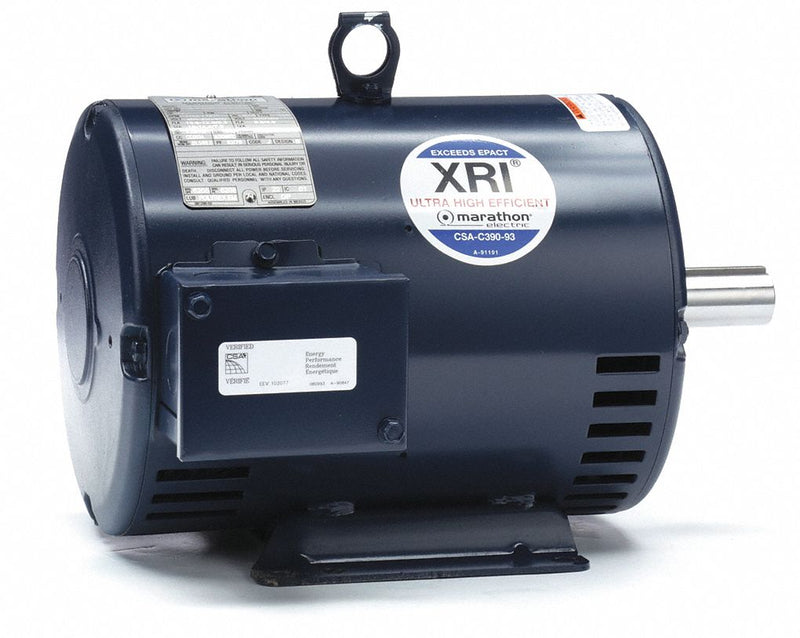

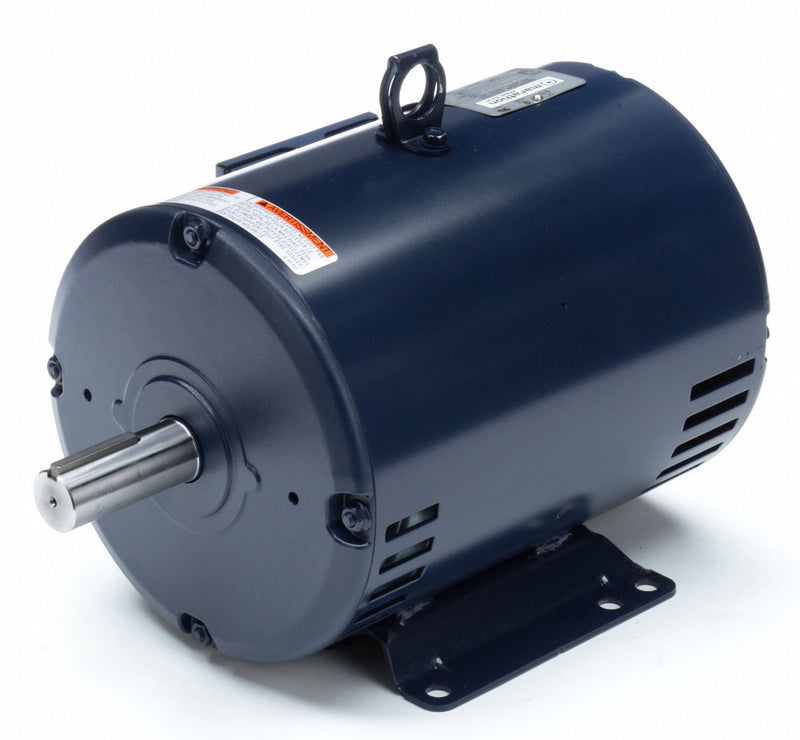

Marathon Motors 5 HP, General Purpose Motor, 3-Phase, 1755 Nameplate RPM, 230/460 Voltage, 184T Frame - 184TTDW6031

MarathonSKU: C2792076
MPN : 184TTDW6031
Weight : 78.0 lb

filler

Price:
$534.78 $652.17

Availability : Usually Ships Within 5-7 Business Days

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP5
Nameplate RPM1755
Frame184T
Voltage230/460
Hz60/50
Phase3
Full Load Amps13.6-12.6/6.3
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionT-Stat
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 1/8 in
Shaft Length2 13/16 in
Length Less Shaft11 3/8 in
Overall Length14 3/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency90.2 %
CC NumberCC003A
Inverter RatedYes
Manufacturers Warranty Length1 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
