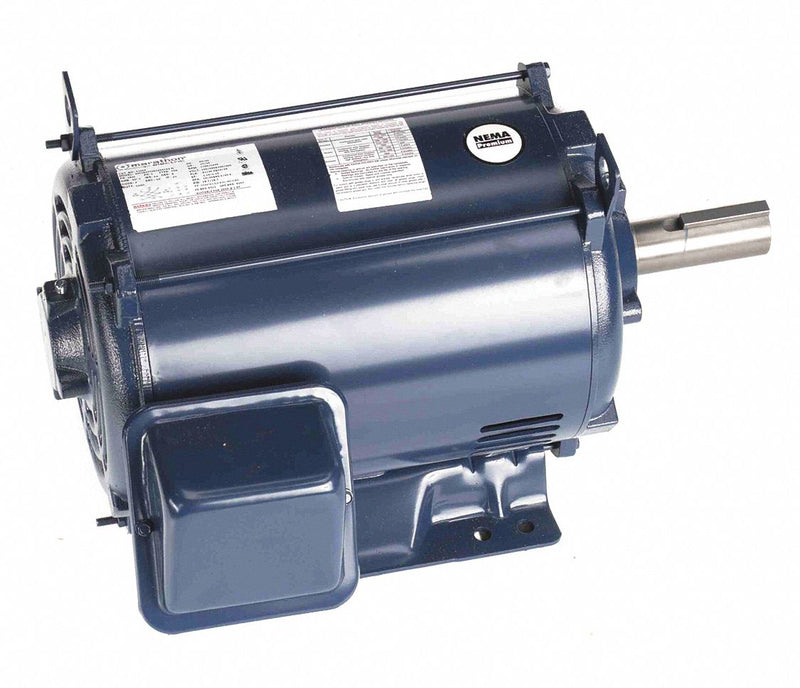

Marathon Motors 7 1/2 HP, General Purpose Motor, 3-Phase, 1765 Nameplate RPM, 230/460 Voltage, 213T Frame - 213TTDBD6026

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 7 1/2; Nameplate RPM: 1765; Frame: 213T; Voltage: 230/460; Hz: 60/50; Phase: 3; Full Load Amps: 20/10; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 3/8 in; Shaft Length: 3 1/2 in; Length Less Shaft: 13 13/16 in; Overall Length: 17 5/16 in; Motor Shaft Design: Keyed; Standards: CSA (LR2025), UL (E49747); Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 82.5 %; CC Number: CC003A; Inverter Rated: No; Manufacturers Warranty Length: 1 yr; Green Certification or Other Recognition: NEMA Premium(R) Rated
