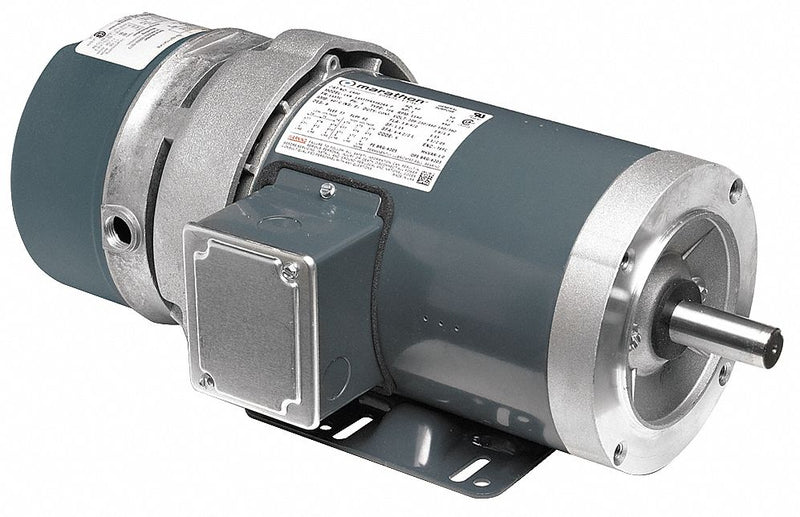

| Item | Brake Motor |
| Motor Application | Brake Motor |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 7 1/2 |
| Nameplate RPM | 1770 |
| Frame | 213TC |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 19.2/9.6 |
| Motor Mounting Type | Rigid Base |
| Brake Rating | 35 ft-lb |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Aluminum |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 1/8 in |
| Length Less Shaft | 23 15/16 in |
| Nominal Efficiency | 85.5 % |
| Motor Efficiency Group | NEMA Premium Efficient |
| CC Number | CC003A |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
