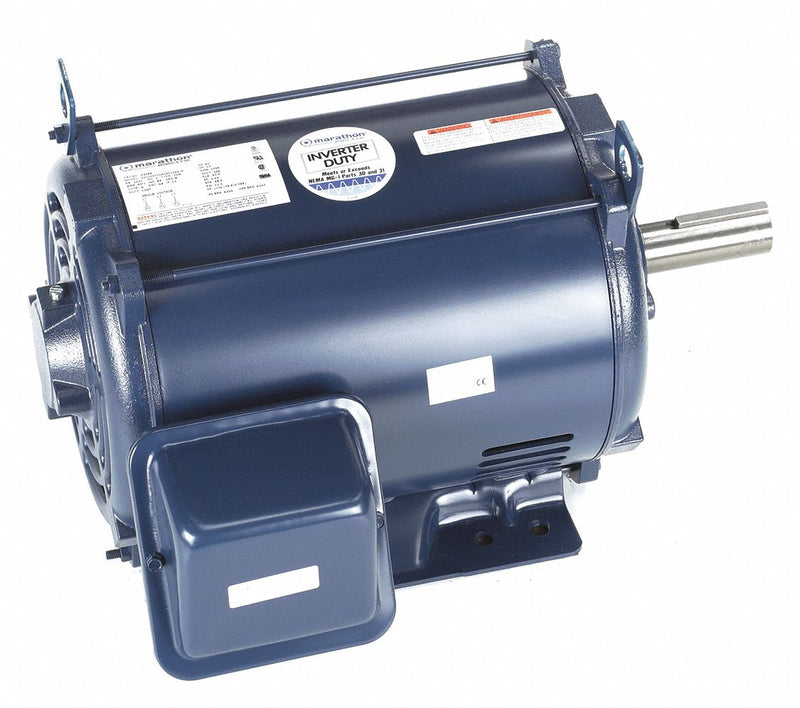

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 15; Nameplate RPM: 1770; Frame: 254T; Voltage: 200; Hz: 60; Phase: 3; Full Load Amps: 42.5; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 5/8 in; Shaft Length: 4 3/16 in; Length Less Shaft: 16 3/8 in; Overall Length: 20 9/16 in; Motor Shaft Design: Keyed; Standards: CSA (LR2025), UL (E49747); Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 91.7 %; CC Number: CC003A; Inverter Rated: No; Manufacturers Warranty Length: 1 yr; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 15 |
| Nameplate RPM | 1770 |
| Frame | 254T |
| Voltage | 200 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 42.5 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 3/16 in |
| Length Less Shaft | 16 3/8 in |
| Overall Length | 20 9/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (LR2025), UL (E49747) |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 91.7 % |
| CC Number | CC003A |
| Inverter Rated | No |
| Manufacturers Warranty Length | 1 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
