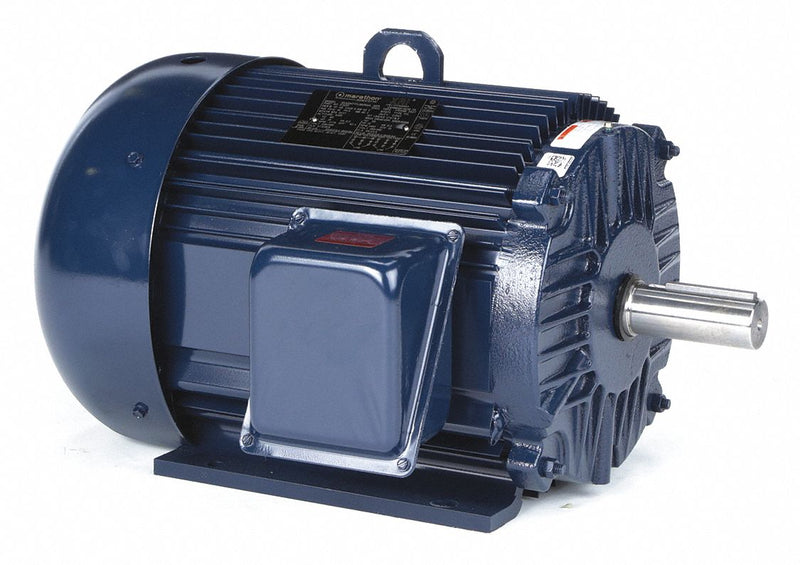

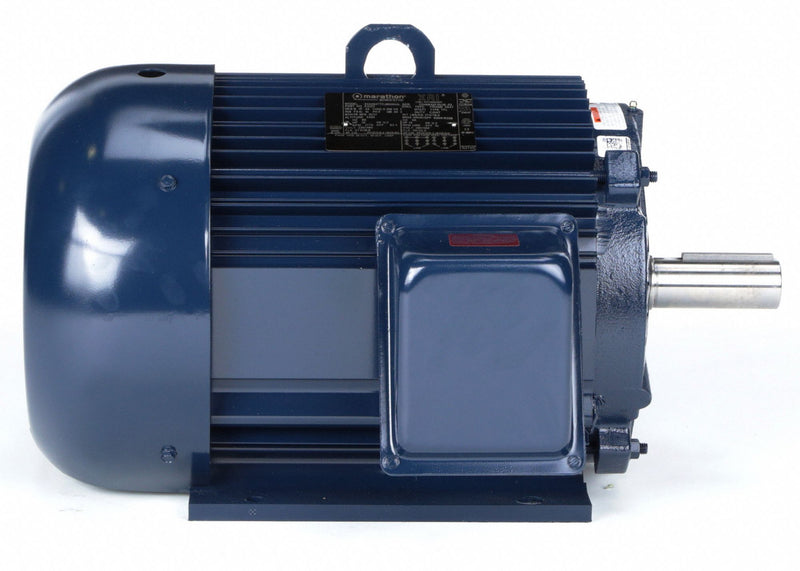

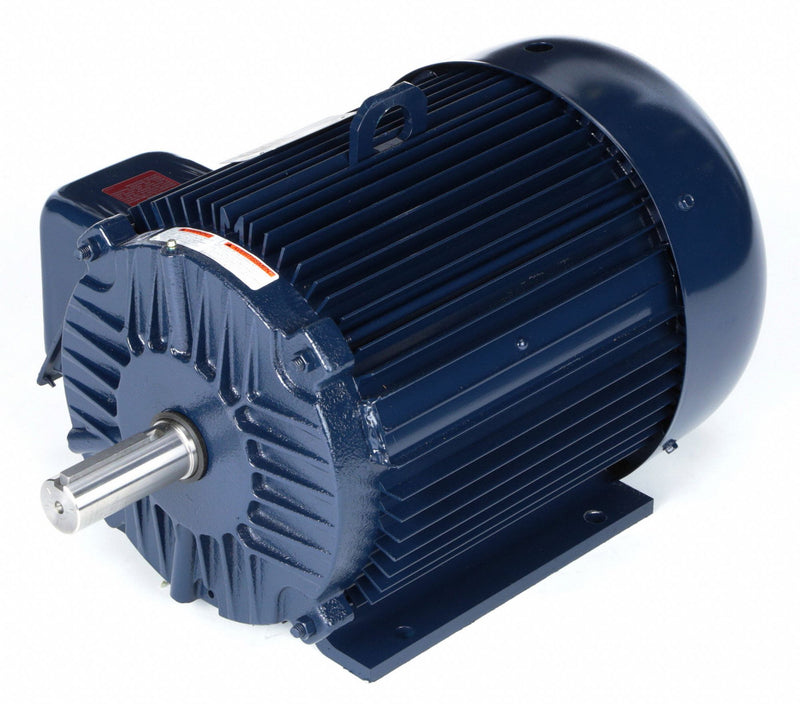

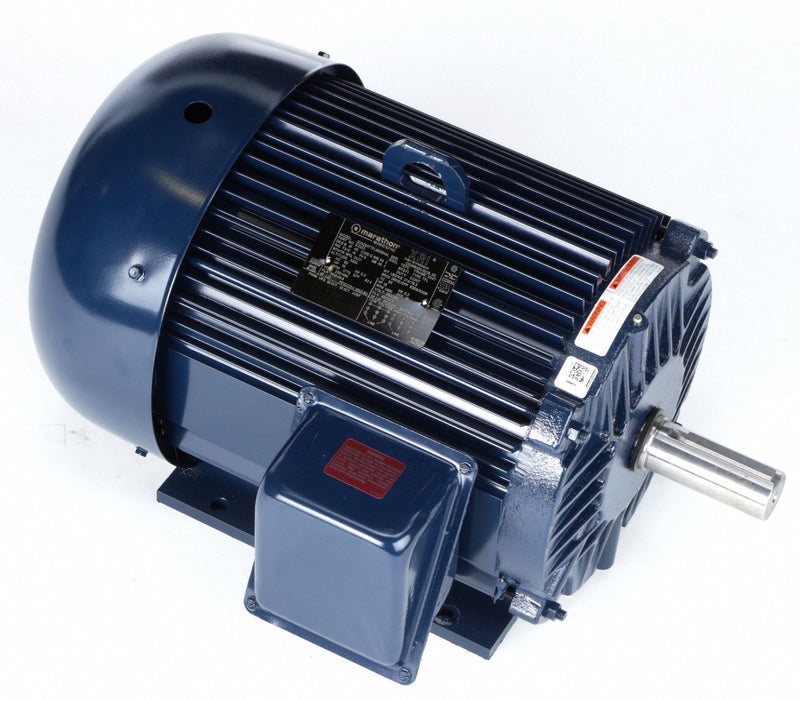

Marathon Motors 15 HP, General Purpose Motor, 3-Phase, 1775 Nameplate RPM, 230/460 Voltage, 254T Frame - 254TTFL16026

MarathonSKU: C2791955
MPN : 254TTFL16026
Weight : 174.0 lb

filler

Price:
$1,266.29 $1,544.26

Availability : Usually Ships in 7-10 Business Days

For use in hard-to-start applications, this general purpose motor helps to get equipment going. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP15
Nameplate RPM1775
Frame254T
Voltage230/460
Hz60/50
Phase3
Full Load Amps37.5/18.8
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Aluminum
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 5/8 in
Shaft Length4 3/8 in
Length Less Shaft19 in
Overall Length23 3/8 in
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency91.7 %
CC NumberCC003A
Inverter RatedYes
Manufacturers Warranty Length1 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
