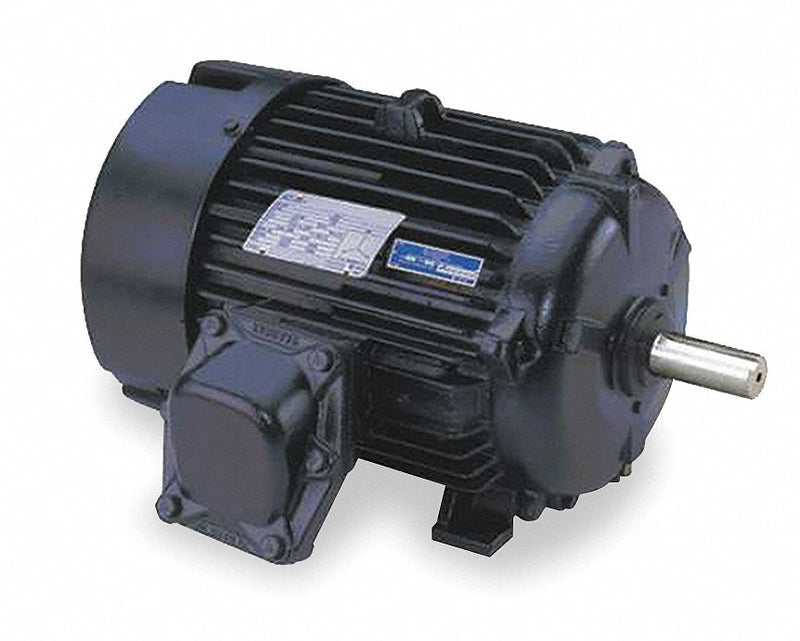

Use this 3-phase motor to power fans, blowers, pumps, or air compressors in hazardous locations.
| Item | Hazardous Location Motor |
| Motor Application | Hazardous Location |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 15 |
| Nameplate RPM | 3550 |
| Frame | 254T |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 35/17.5 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | T-Stat |
| Motor Service Factor | 1.15 |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Max. Ambient Temp. | 40 Degrees C |
| Temp. Code | T3B |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 in |
| Length Less Shaft | 19 1/2 in |
| Overall Length | 23 1/2 in |
| Lead Length | 8 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 94.1 % |
| CC Number | CC003A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Includes | (11) Leads In Conduit Box |
| Standards | UL Listed (E12044), CSA Certified (LR47504) |
