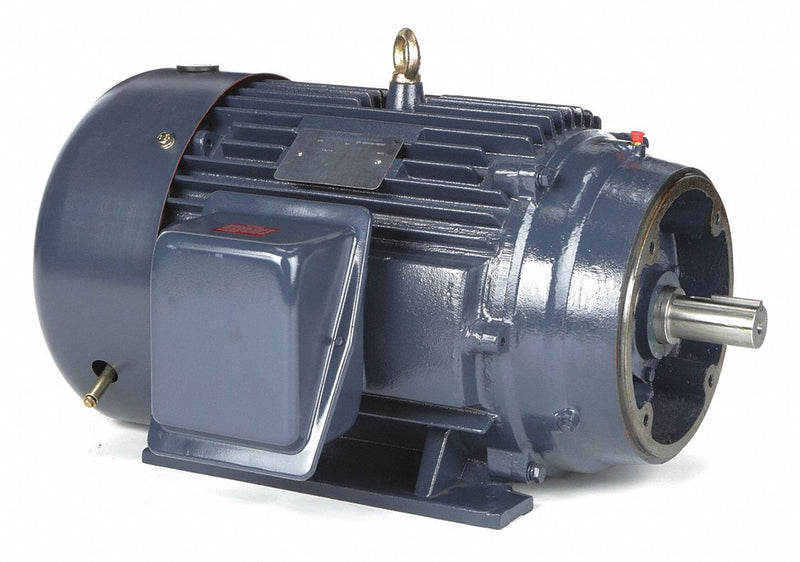

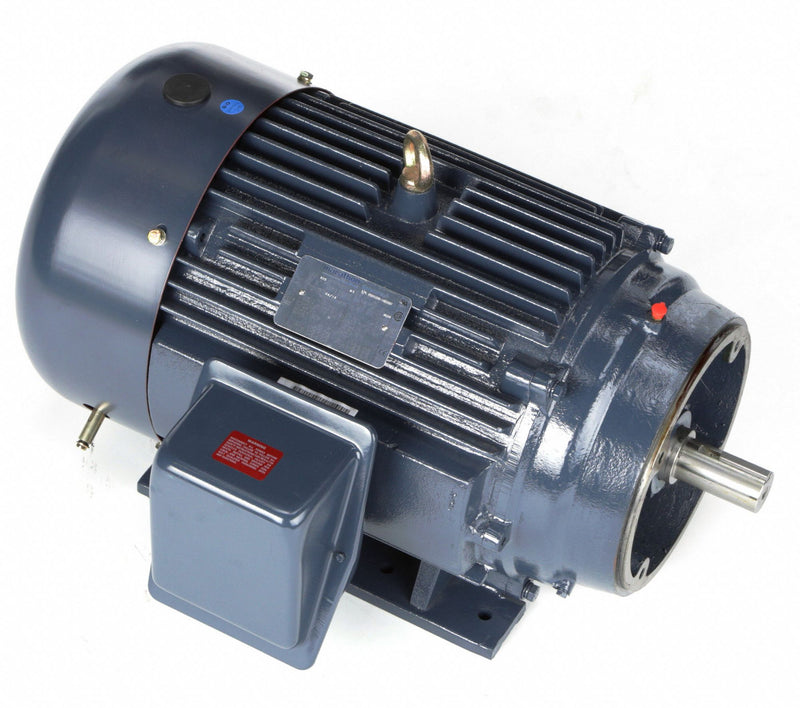

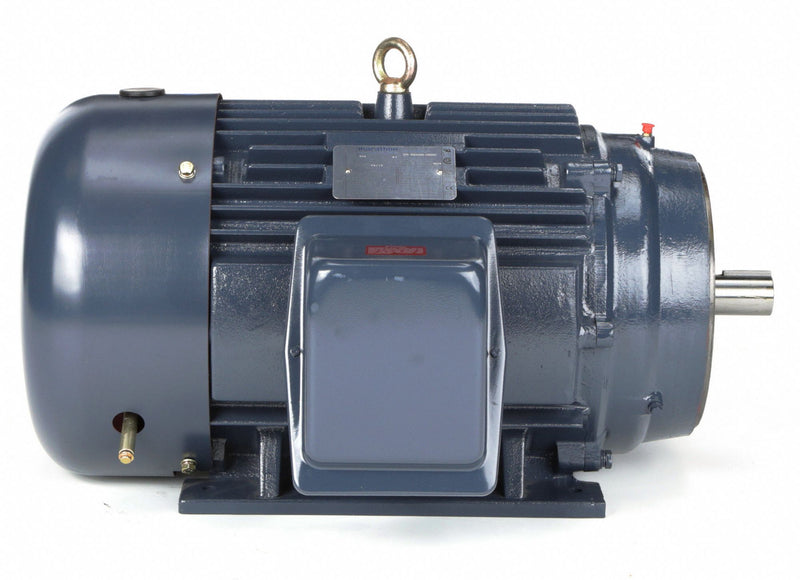

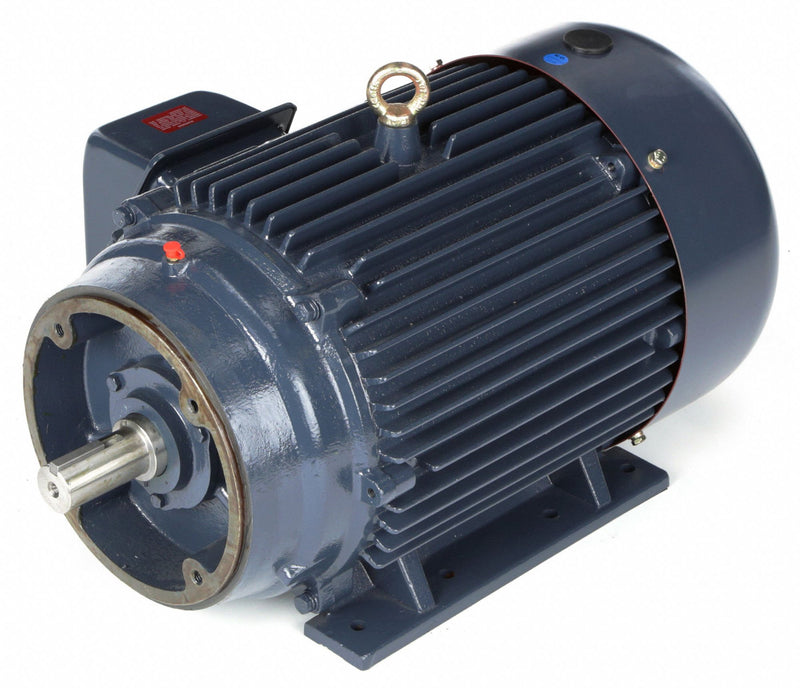

Designed for air moving equipment, this general purpose motor helps keep fans moving. It features a totally enclosed, fan-cooled enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 25 |
| Nameplate RPM | 3550 |
| Frame | 284TSC |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 56/28 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 3 1/4 in |
| Length Less Shaft | 25 9/16 in |
| Overall Length | 28 13/16 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA (LR2025), UL (E49747) |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 94.5 % |
| CC Number | CC003A |
| Inverter Rated | No |
| Manufacturers Warranty Length | 1 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
