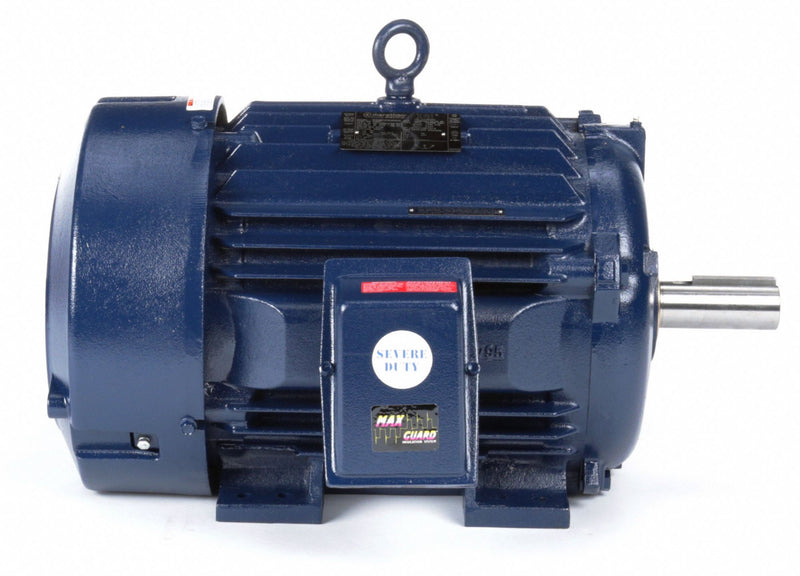

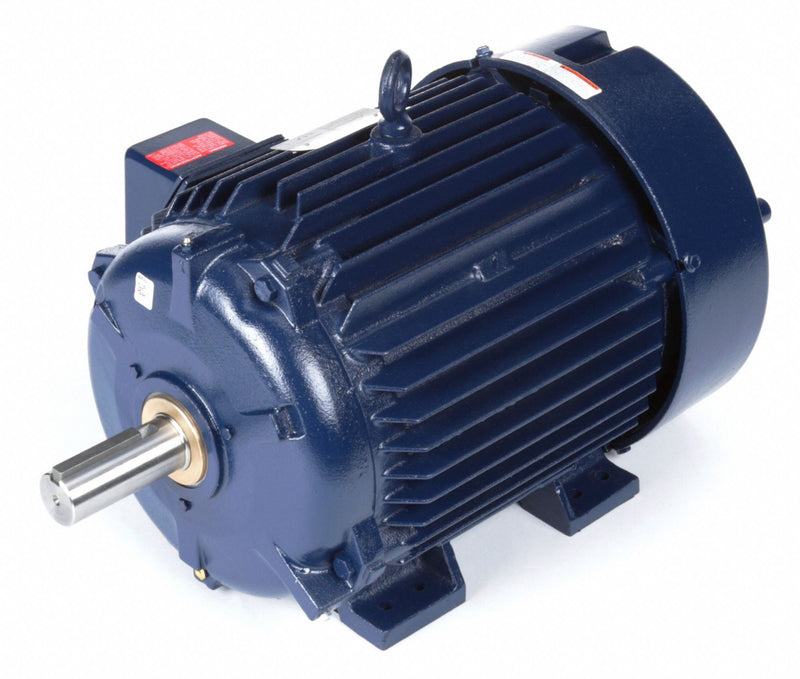

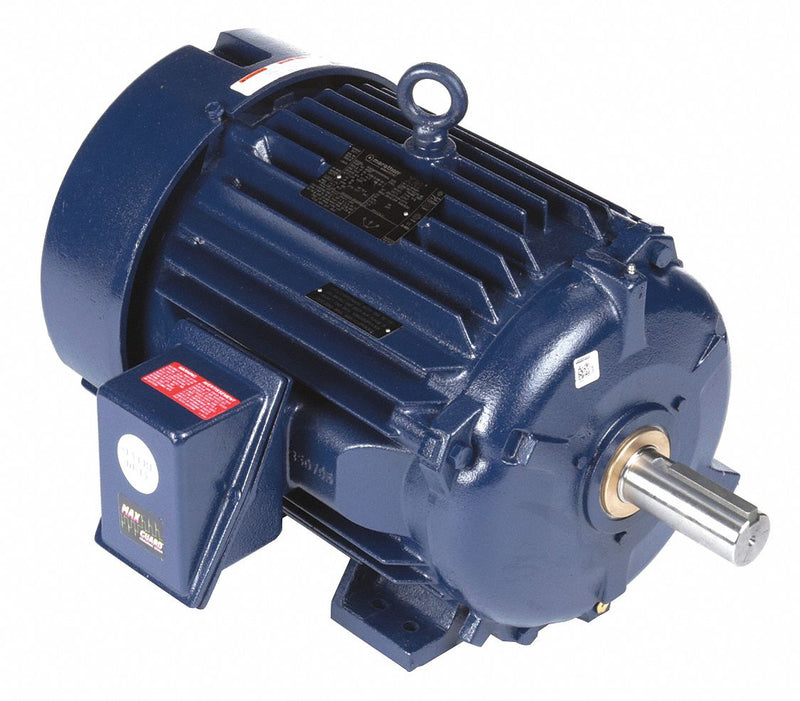

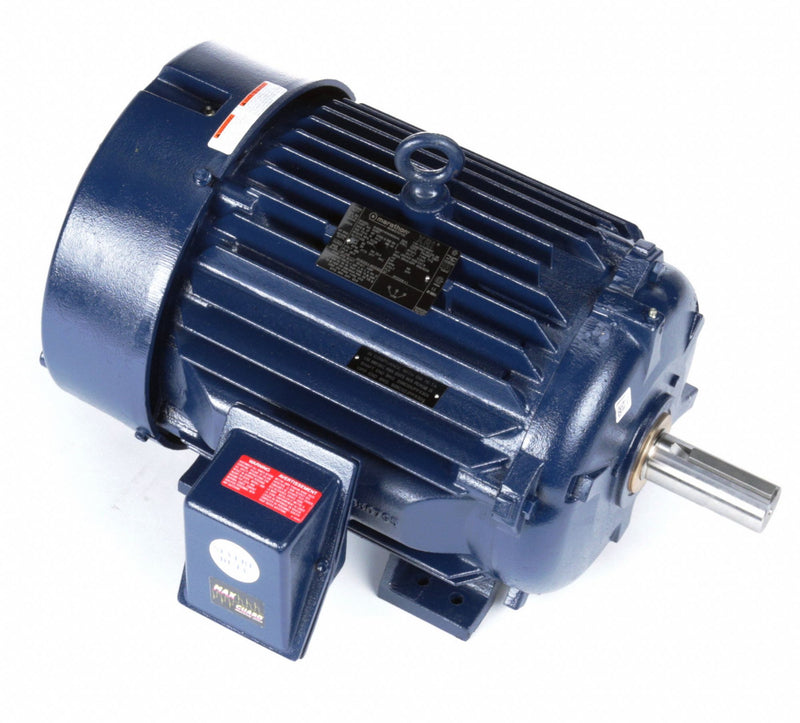

Marathon Motors 30 HP, IEEE 841 Motor, 3-Phase, 1770 Nameplate RPM, 230/460 Voltage, 286T Frame - 286THFCD9026

MarathonSKU: C2791780
MPN : 286THFCD9026
Weight : 528.0 lb
filler

Price:
$3,912.35 $4,771.16

Availability : Usually Ships Within 5-7 Business Days

Keep equipment moving with this general purpose motor. Its 3-phase motor design offers high starting torque, and is suitable for use in industrial environments where 3-phase power is available. It also features a totally enclosed, fan-cooled enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The cast iron frame offers excellent resistance to wear and holds its shape after impact.

ItemIEEE 841 Motor
Motor ApplicationIEEE Motor
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP30
Nameplate RPM1770
Frame286T
Voltage230/460
Hz60
Phase3
Full Load Amps36.5
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 7/8 in
Shaft Length4 13/16 in
Length Less Shaft22 7/8 in
Overall Length27 11/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency94.1 %
CC NumberCC003A
IncludesBreather/Drain
Green Certification or Other RecognitionNEMA Premium(R) Rated
