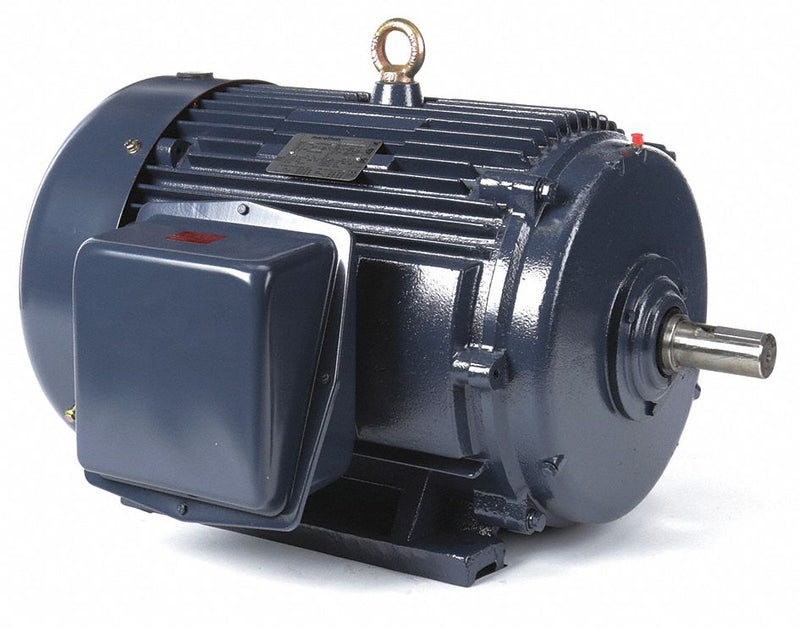

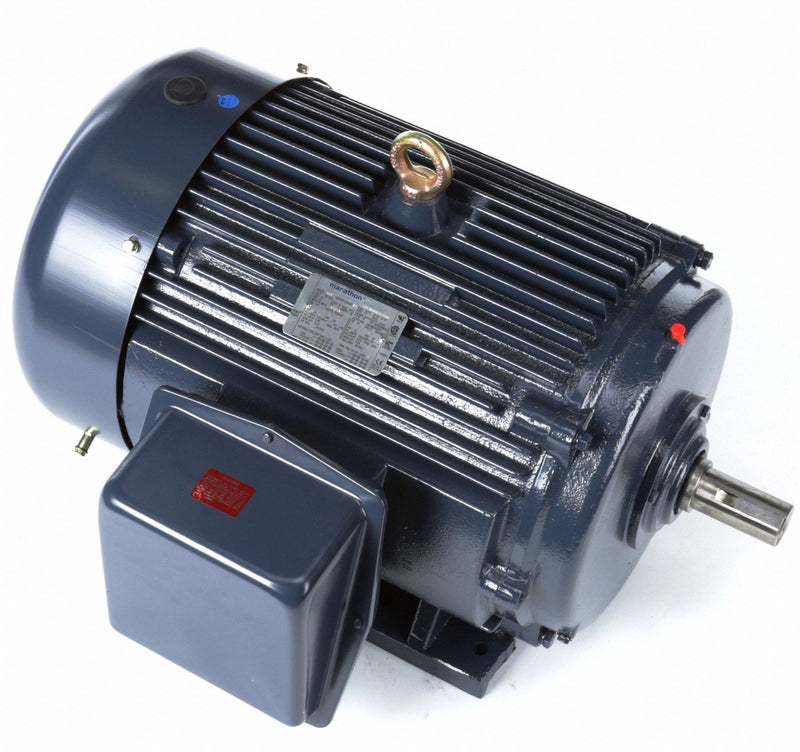

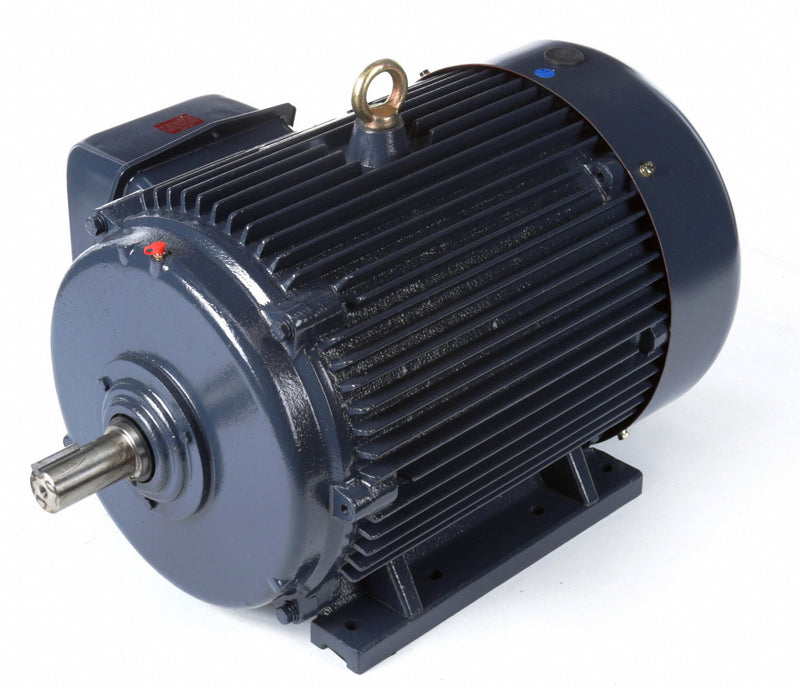

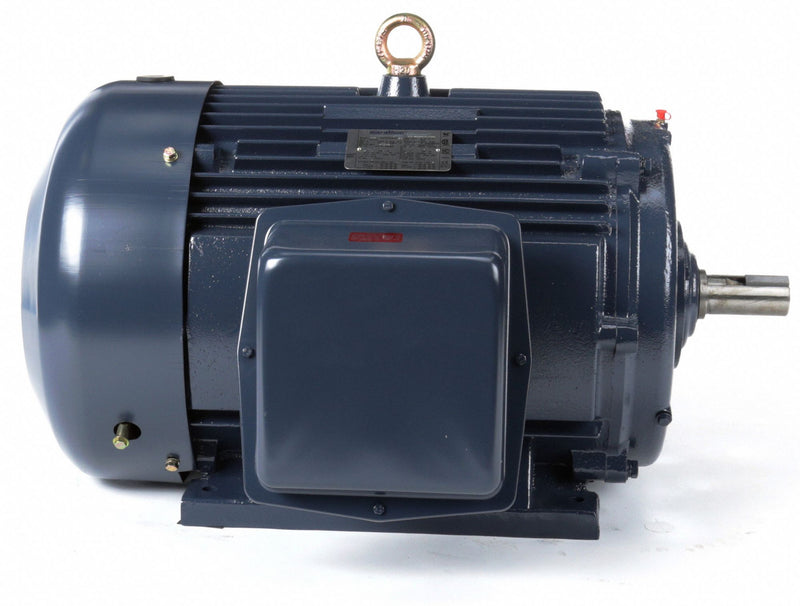

Marathon Motors 60 HP, General Purpose Motor, 3-Phase, 3575 Nameplate RPM, 230/460 Voltage, 364TS Frame - 364TSTFCD6001

MarathonSKU: C2791572
MPN : 364TSTFCD6001
Weight : 942.0 lb
filler

Price:
$7,416.99 $9,045.11

Availability : Usually Ships in 10-15 Business Days

For use in hard-to-start applications, this general purpose motor helps to get equipment going. It features a totally enclosed, fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP60
Nameplate RPM3575
Frame364TS
Voltage230/460
Hz60/50
Phase3
Full Load Amps135/67.5
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 7/8 in
Shaft Length3 3/4 in
Length Less Shaft30 13/16 in
Overall Length34 9/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency95.8 %
CC NumberCC003A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length1 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
