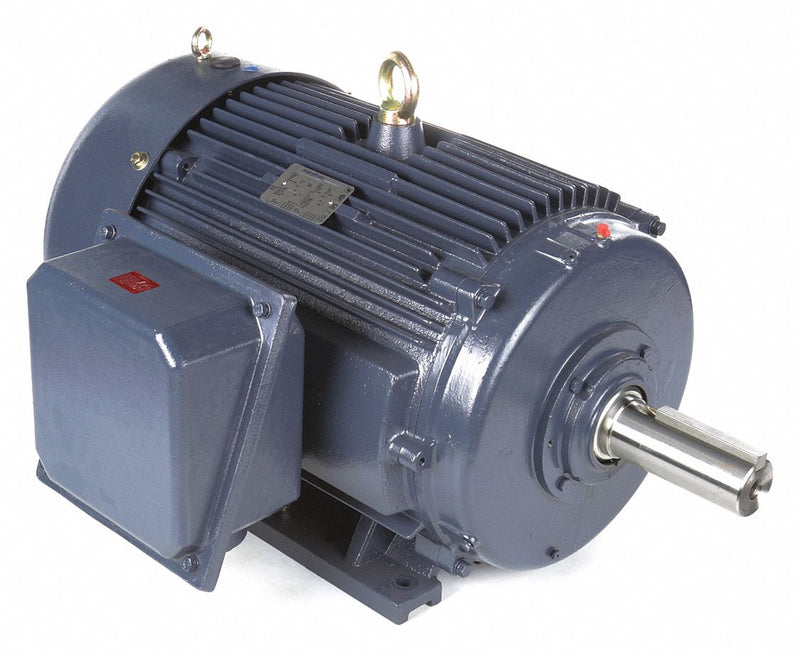

| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 100 |
| Nameplate RPM | 1785 |
| Frame | 405T |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 228/114 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 2 7/8 in |
| Shaft Length | 7 1/4 in |
| Length Less Shaft | 35 1/2 in |
| Overall Length | 42 3/4 in |
| Motor Shaft Design | Keyed |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Standards | UL (E49747), CSA (LR2025) |
| Nominal Efficiency | 82.5 % |
| CC Number | CC003A |
| RPM Group | 1701-1800 |
| Voltage Compatibility | 220-230/460, 230/460, 460 |
