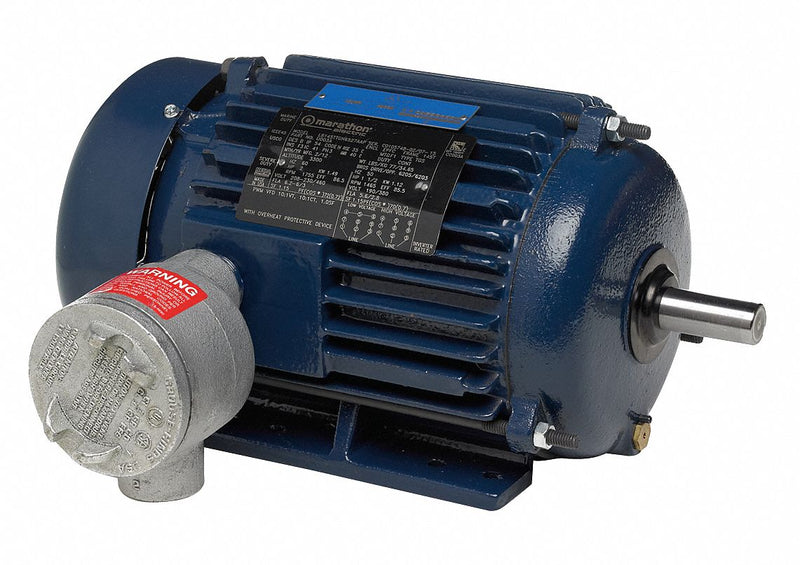

| Item | Hazardous Location Motor |
| Motor Application | Hazardous Location |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 350 |
| Nameplate RPM | 1785 |
| Frame | 447/9T |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 460 |
| Full Load Amps | 395 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | T-Stat |
| Motor Service Factor | 1 |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Max. Ambient Temp. | 40 Degrees C |
| Temp. Code | T3B |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 3 3/8 in |
| Shaft Length | 8 1/2 in |
| Length Less Shaft | 19 3/4 in |
| Overall Length | 28 1/4 in |
| Lead Length | 10 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 50.5 % |
| CC Number | CC003A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Standards | UL (E12044), CSA (LR21839) |
