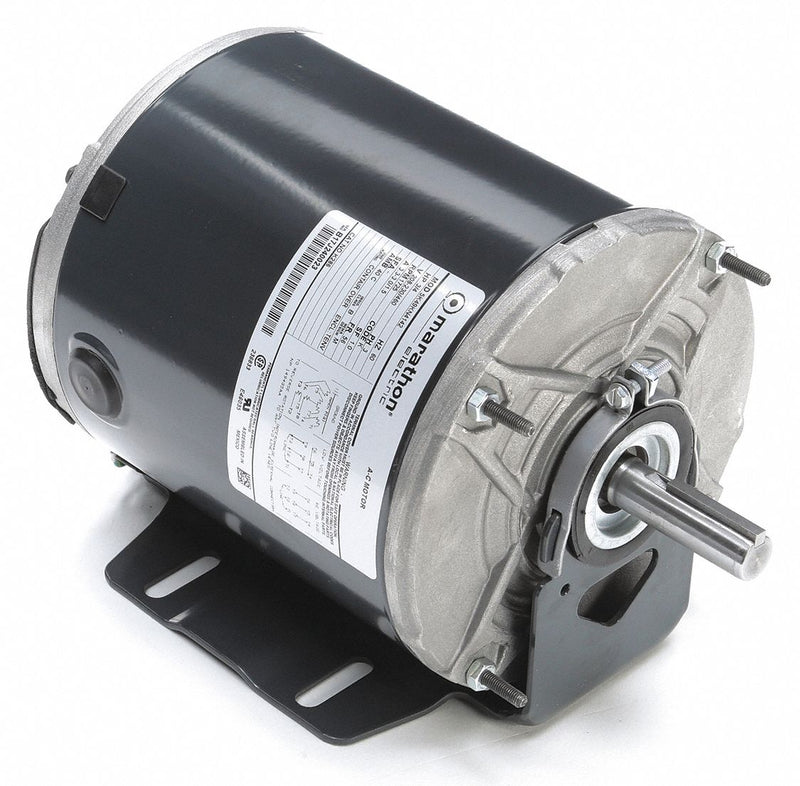

| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | 3-Phase |
| HP | 3/4 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Voltage | 208-230/460 |
| Frame | 56 |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | Horizontal |
| Hz | 60 |
| Full Load Amps | 3.3-3/1.5 |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 8 5/8 in |
| Overall Length | 10 1/2 in |
| Body Dia. | 6 7/16 in |
| Mounting Stud Pattern | 4-3/16 in x 4-3/16 in |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 7 15/16 in |
| Nominal Efficiency | 74.3 % |
| Duty | Continuous |
| Phase | 3 |
| Manufacturers Warranty Length | 1 yr |
| Standards | CSA (MC236833), UL (E46035) |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
