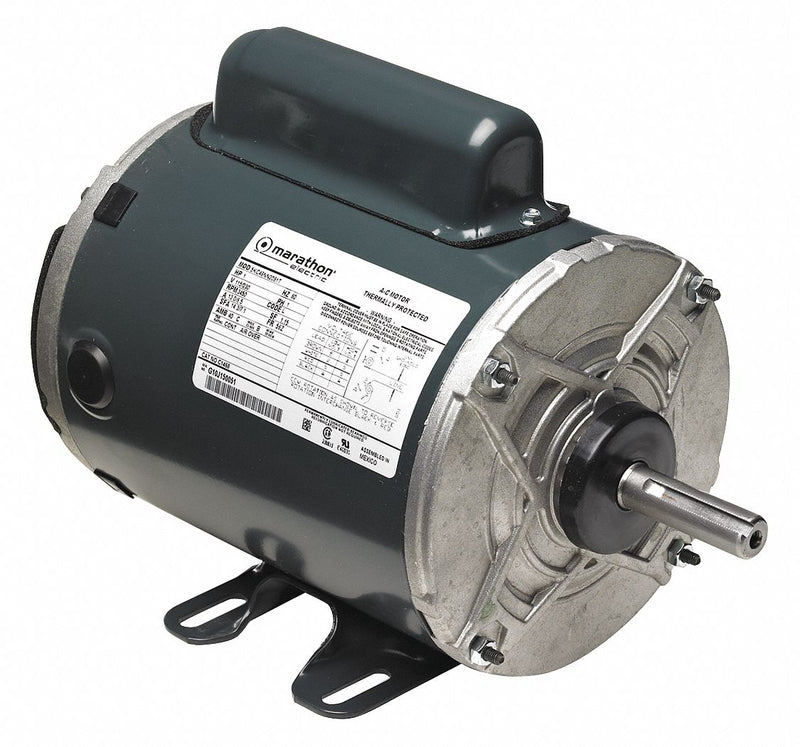

Keep your barn aerated with this aeration fan motor. It features a totally enclosed, nonventilated enclosure design, which keeps the motor free of dampness and airborne particles to avoid contamination. It also features ball bearings and a rolled steel frame to help provide durability and long service life.
| Item - Farm Duty Motors | Aeration Fan Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Aeration Fan |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 3/4 |
| Nameplate RPM | 3450 |
| Frame | 56Z |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/230 |
| Full Load Amps | 9.8/4.9 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.25 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/4 in |
| Motor Shaft Design | Keyed |
| Overall Length | 11 1/4 in |
| Ins. Class | B |
| Duty | Continuous |
| Standards | CSA, UL |
| Item | Aeration Fan Motor |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
