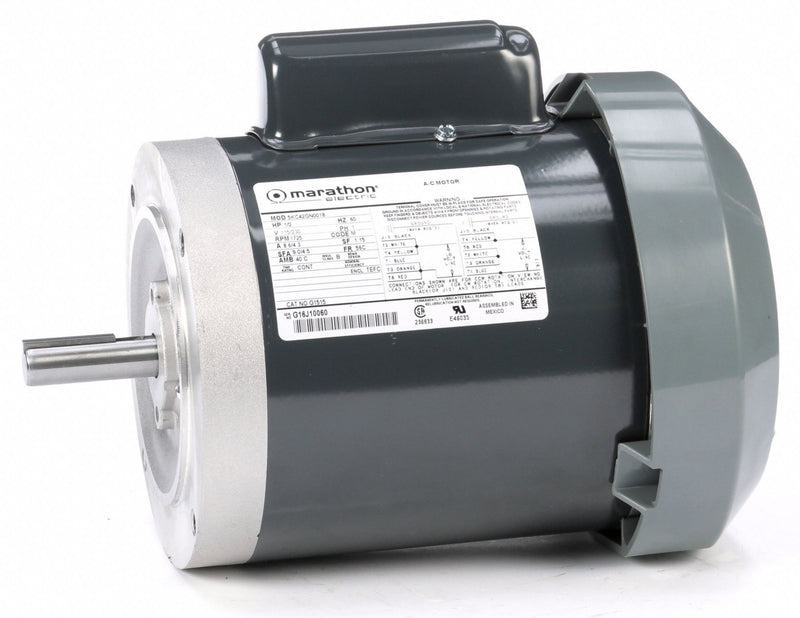

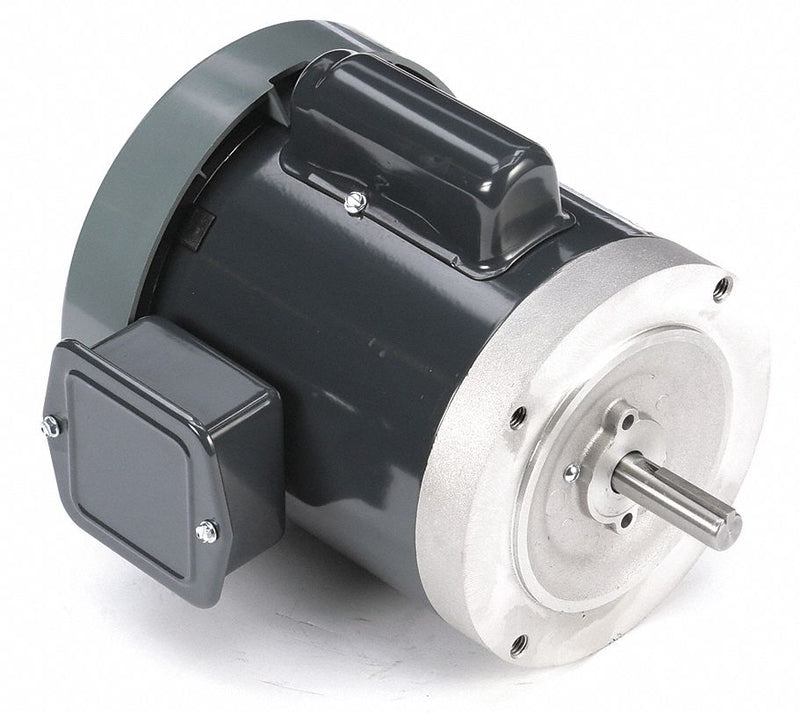

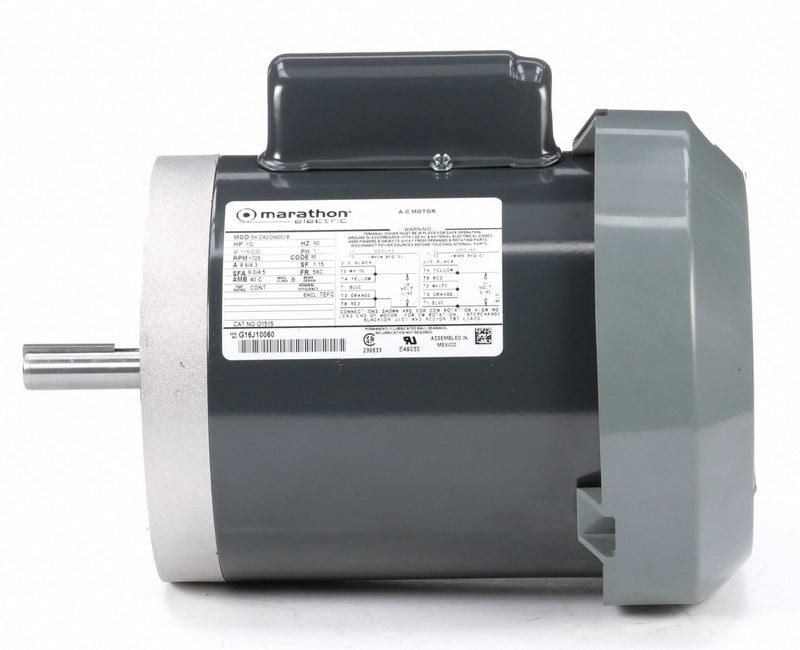

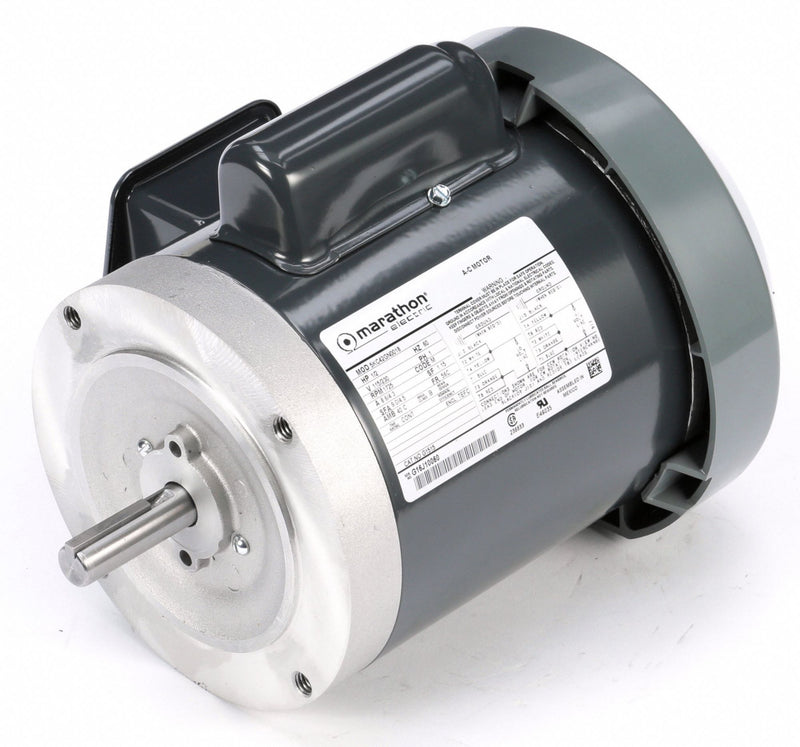

Marathon Motors 1/2 HP, General Purpose Motor, Capacitor-Start, 1725 Nameplate RPM, 115/230 Voltage, 56C Frame - 5KC42GN0018

MarathonSKU: C2903325
MPN : 5KC42GN0018
Weight : 21.9 lb
filler

Price:
$400.54 $488.46

Availability : Usually Ships Within 5-7 Business Days

Keep equipment running with this continuous-duty motor. It features a totally enclosed fan-cooled motor enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. The rolled steel frame is durable, ductile, and resists fracturing upon impact. It is capable of running continuously for an extended time period without overheating.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/2
Nameplate RPM1725
Frame56C
Voltage115/230
Hz60
Phase1
Full Load Amps8.6/4.3
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length2 1/8 in
Length Less Shaft8 7/8 in
Overall Length11 in
Motor Shaft DesignKeyed
StandardsCSA (MC236833), UL (E46035)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency64 %
Inverter RatedNo
Manufacturers Warranty Length2 yr
