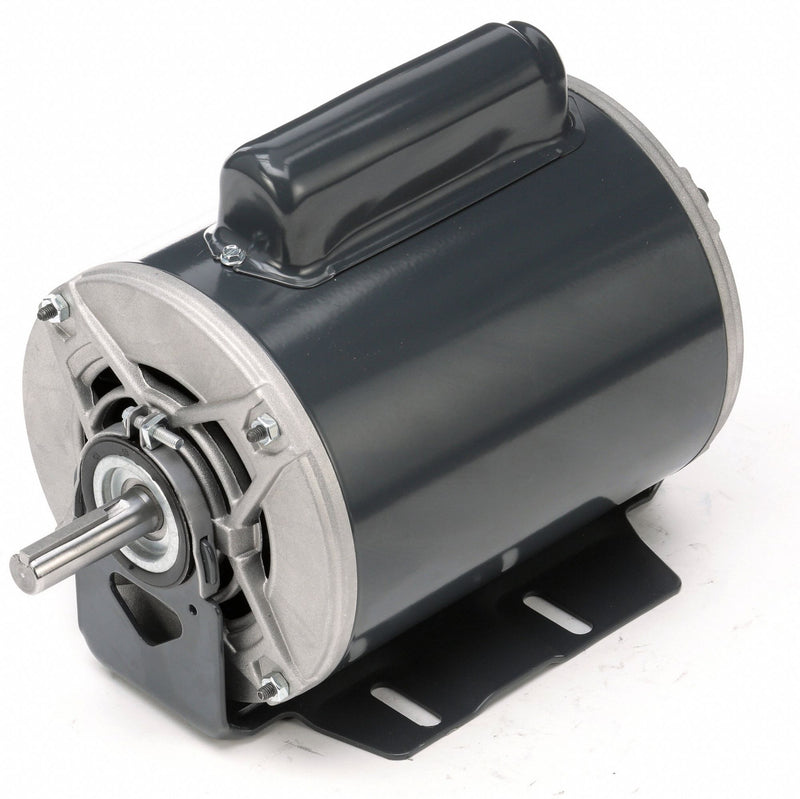

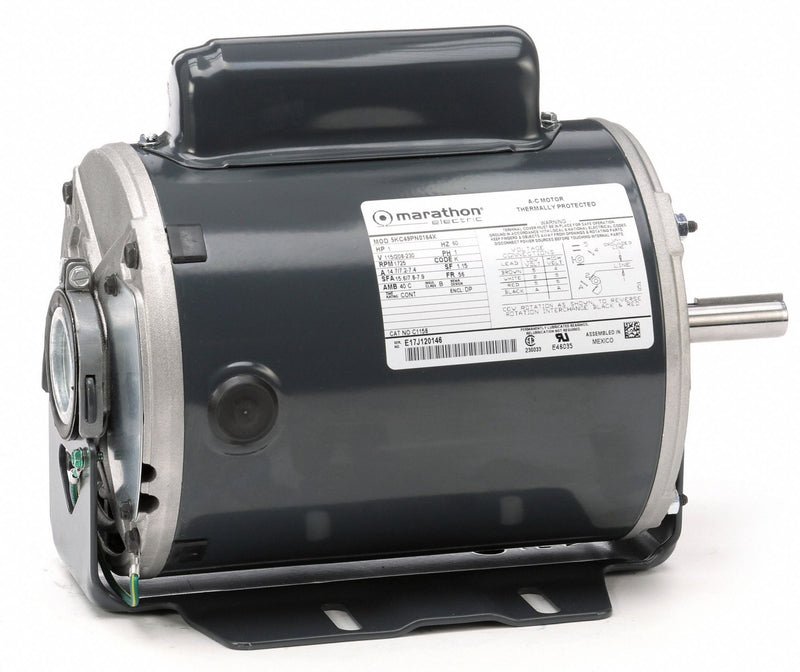

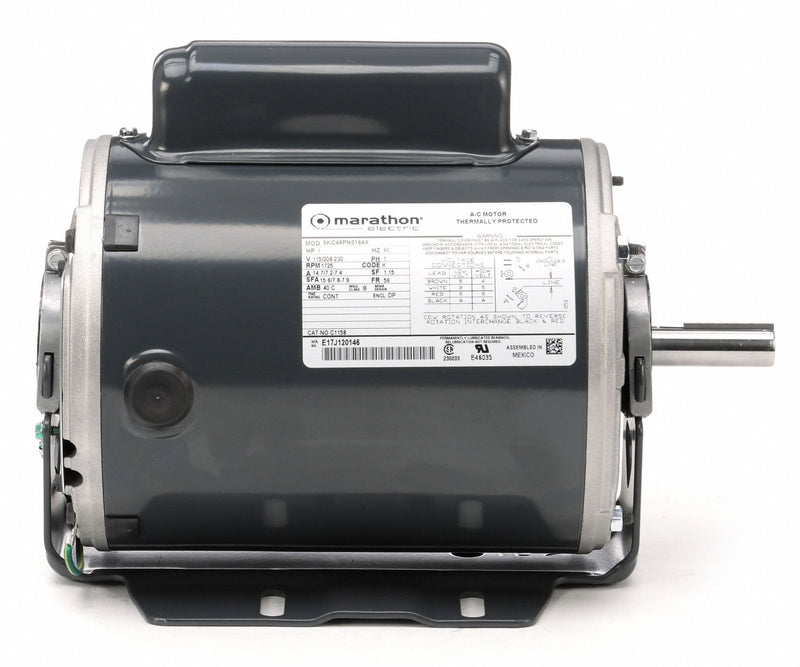

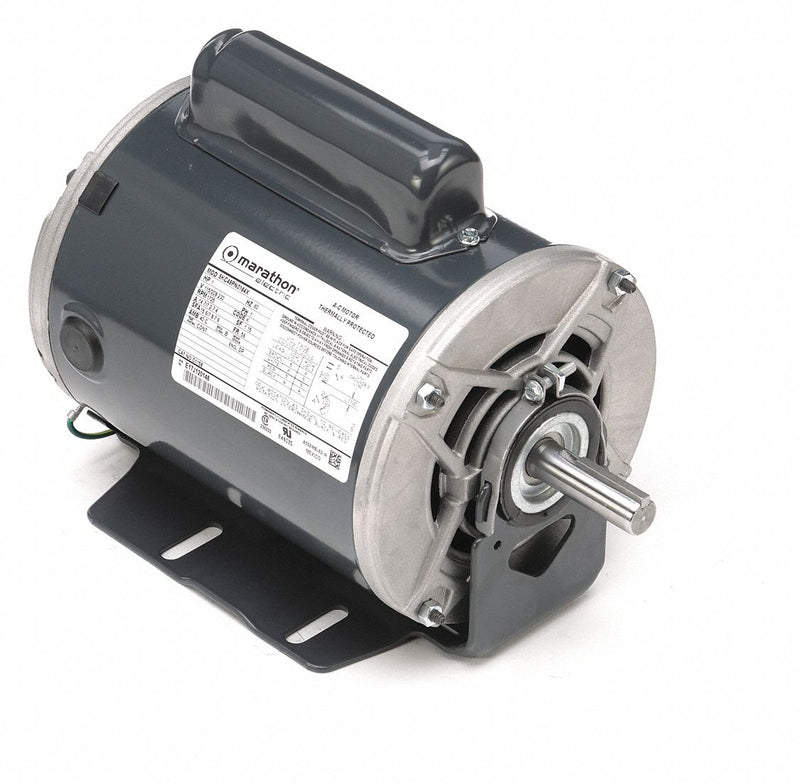

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| Nameplate RPM | 1725 |
| Frame | 56 |
| Voltage | 115/208-230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 14.7/7.2-7.4 |
| No. of Speeds | 1 |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 15/16 in |
| Length Less Shaft | 9 7/16 in |
| Overall Length | 11 3/8 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (MC236833), UL (E14133) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 70 % |
| Inverter Rated | No |
| Manufacturers Warranty Length | 1 yr |
