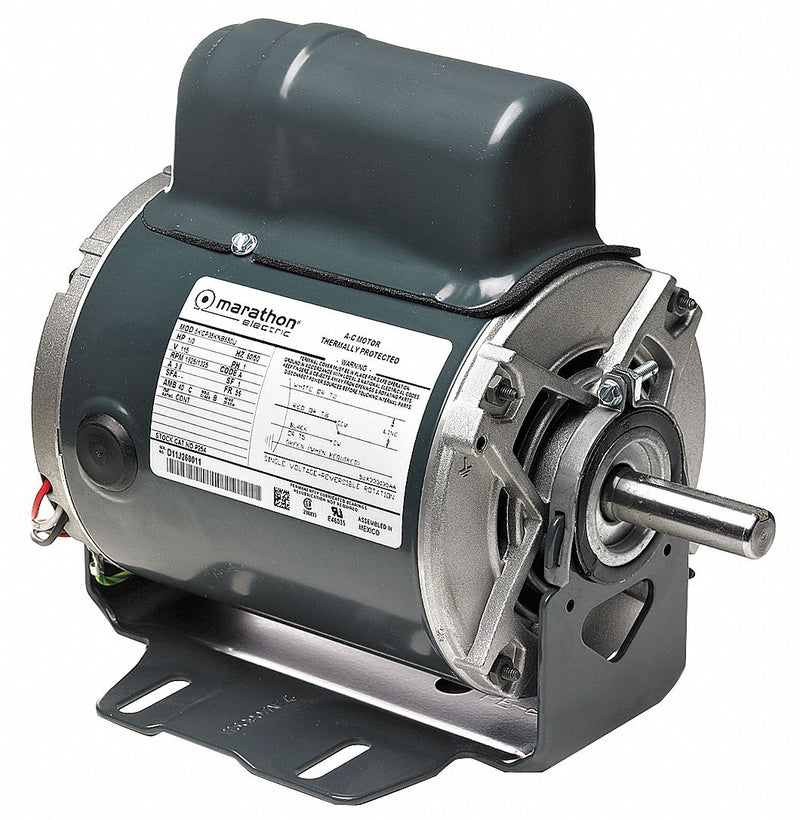

| Item | Instant Reverse Motor |
| Motor Application | Garage/Gate Opener |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/2 |
| Nameplate RPM | 1625/1325 |
| Frame | 56 |
| Voltage | 115 |
| Full Load Amps | 5.4 |
| Phase | 1 |
| Hz | 60/50 |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Thermal Protection | Manual |
| Motor Service Factor | 1 |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Ins. Class | B |
| Number of Wires | 3 |
| Application | For Mechanical Doors, Gates and Hoists |
| Standards | CSA Certified, UL Recognized, and CE Certified |
| RPM Range | 1601-1700 |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
