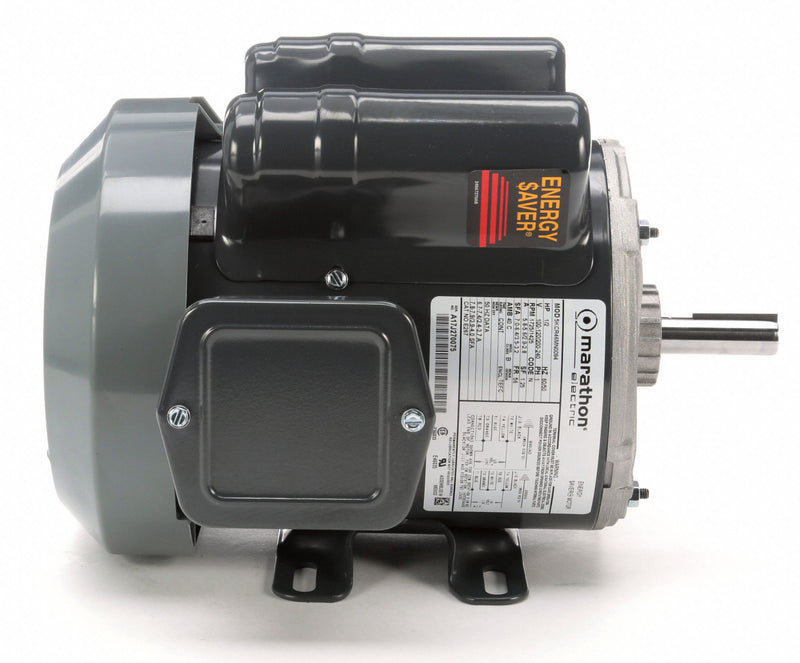

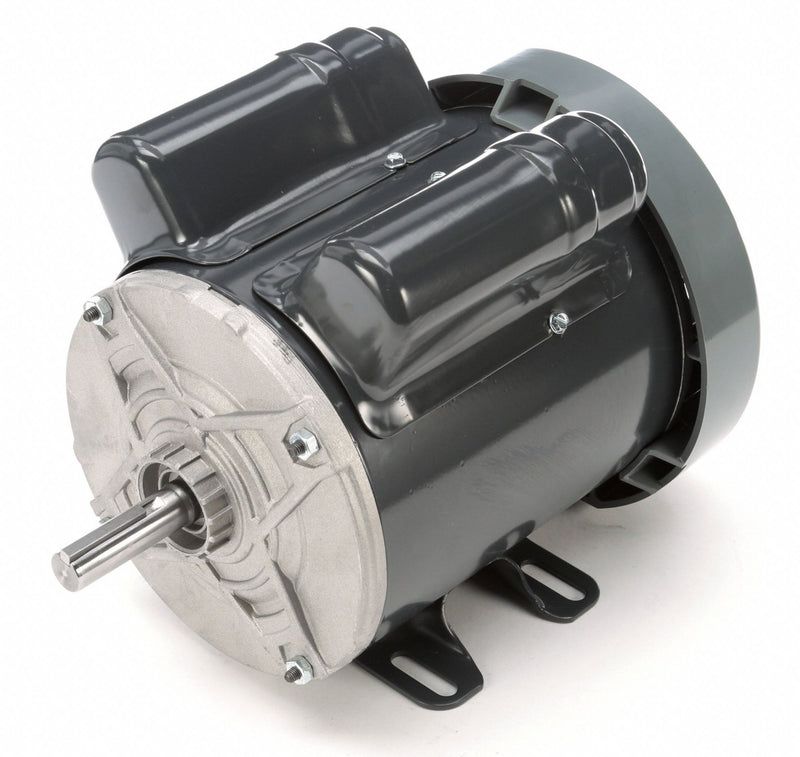

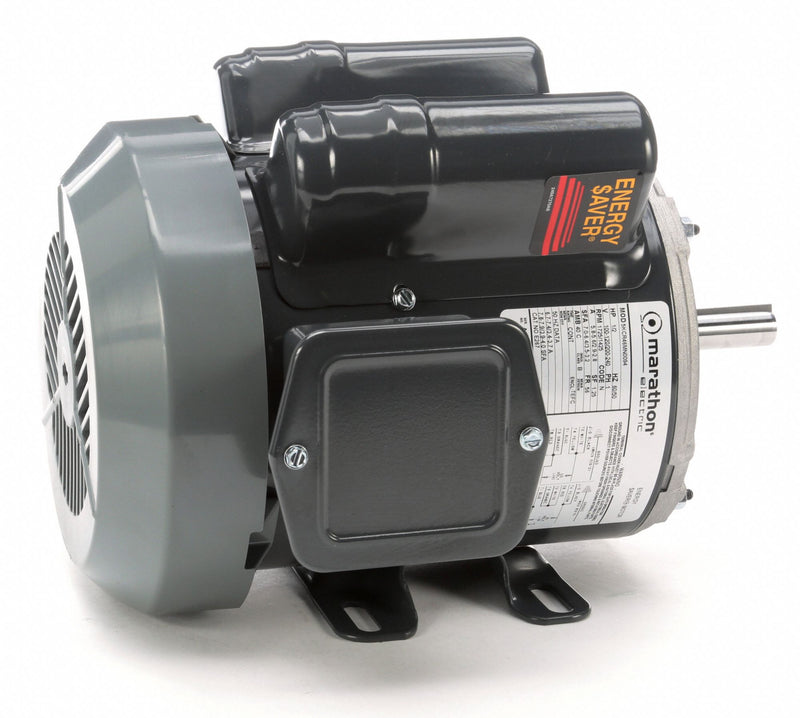

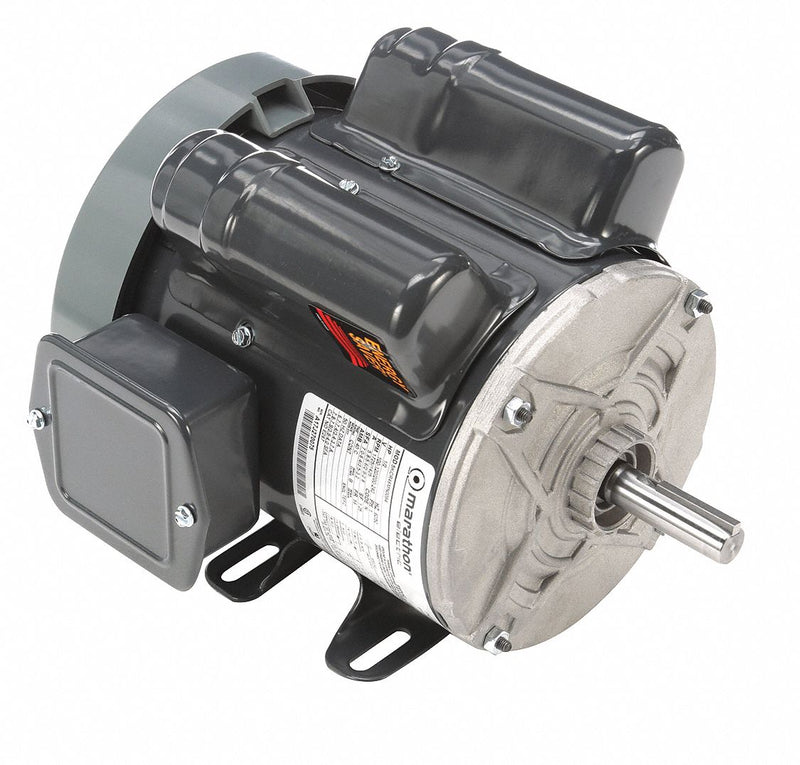

Totally enclosed motor is suitable for clean, dry, and nonhazardous applications including fans, blowers, pumps, printing equipment, and other business machines. In addition, it can be used for dusty, dirty, and nonhazardous environments.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/2 |
| Nameplate RPM | 1725 |
| Frame | 56 |
| Voltage | 120/240 |
| Hz | 60/50 |
| Phase | 1 |
| Full Load Amps | 5.8-5.6/2.9-2.8 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Overall Length | 11 13/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (MC236833), UL (E46035) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 74 % |
| Manufacturers Warranty Length | 1 yr |
