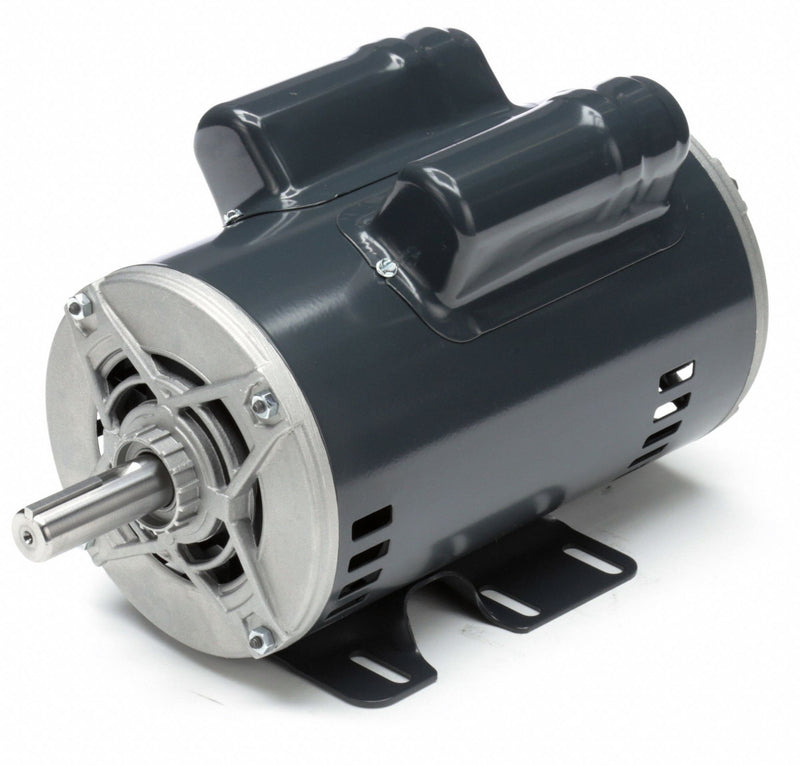

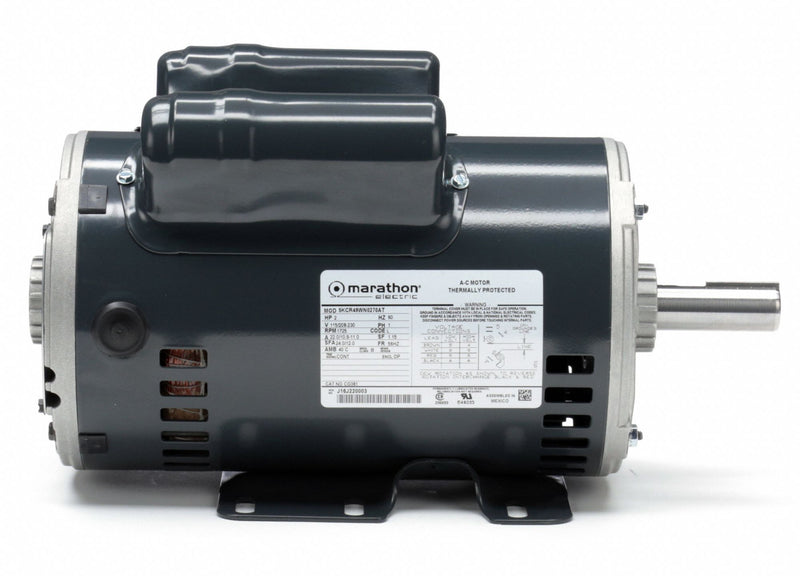

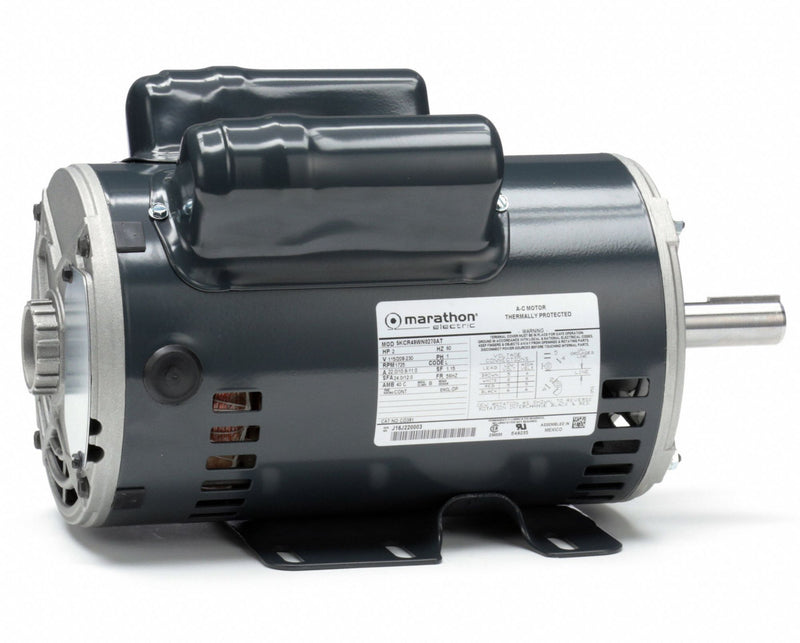

Marathon Motors 2 HP, General Purpose Motor, Capacitor-Start/Run, 1725 Nameplate RPM, 115/208-230 Voltage - 5KCR49WN0270T

MarathonSKU: C2792645
MPN : 5KCR49WN0270T
Weight : 42.45 lb

filler

Price:
$758.57 $1,223.50

Availability : Usually Ships in 10 Business Days

Keep equipment running with this general purpose motor. It features an open dripproof motor enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor. Use for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
HP2
Nameplate RPM1725
Frame56HZ
Voltage115/208-230
Hz60
Phase1
Full Load Amps22/10.9-11
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft12 1/16 in
Overall Length14 5/16 in
Motor Shaft DesignKeyed
StandardsCSA (MC236833), UL (E14133)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency72 %
Inverter RatedNo
Manufacturers Warranty Length1 yr
