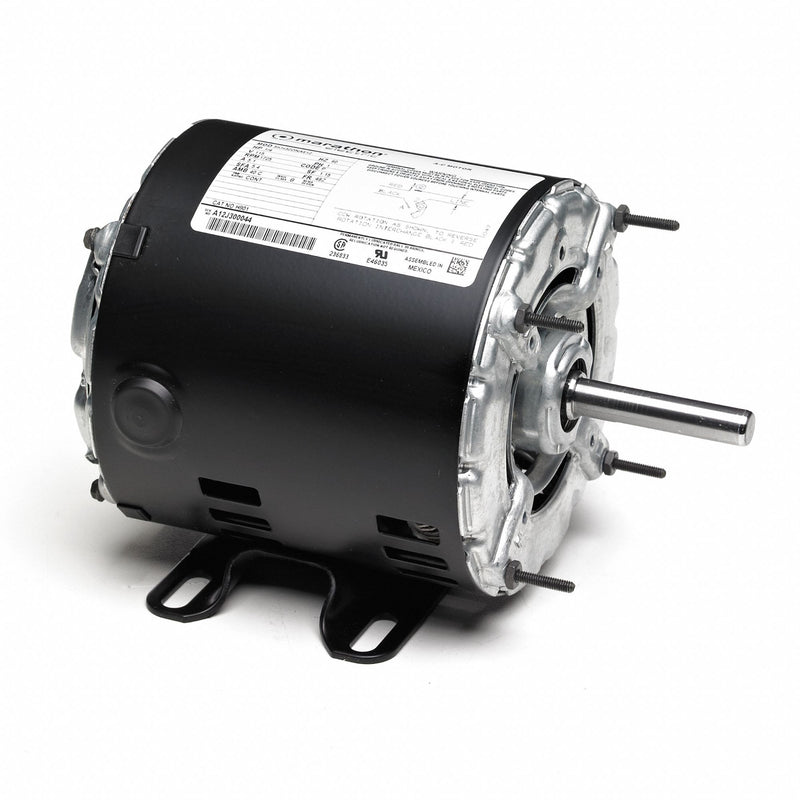

Keep equipment running with this general purpose motor. It features an open dripproof motor enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor. Use for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4 |
| Nameplate RPM | 1725 |
| Frame | 56Z |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 11.2 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 9 1/16 in |
| Overall Length | 11 5/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (MC236833), UL (E14133) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 66 % |
| Inverter Rated | No |
| Manufacturers Warranty Length | 1 yr |
